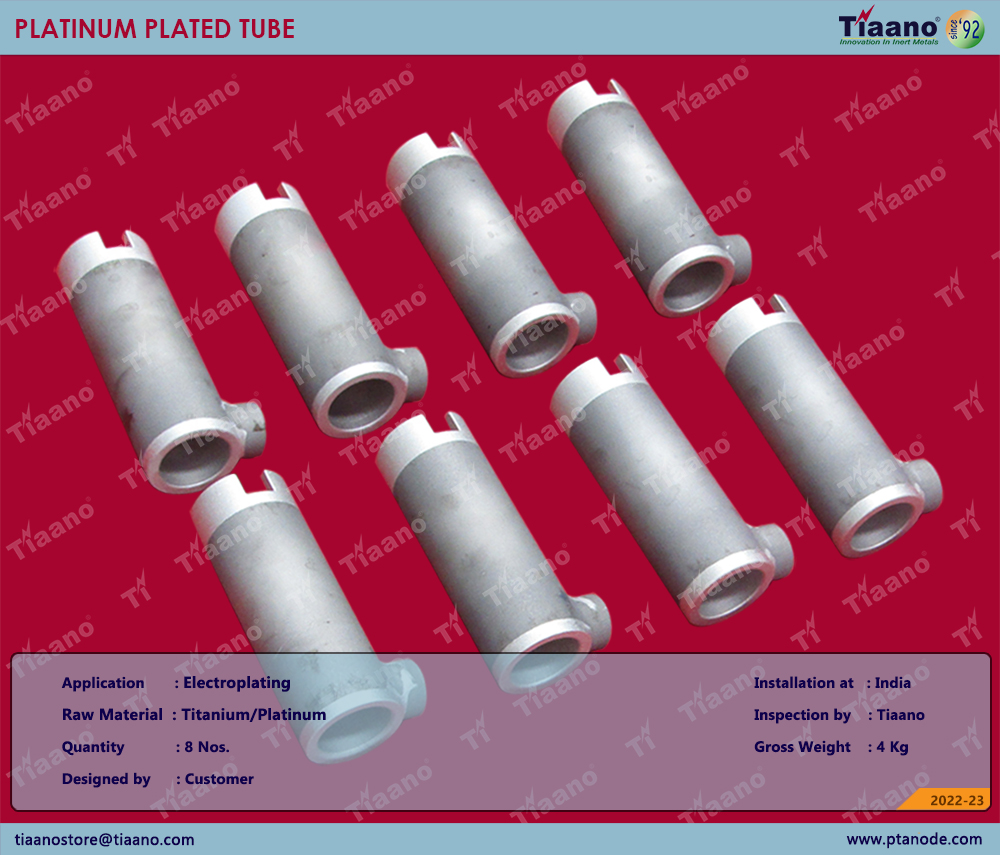

PLATINUM / TITANIUM PLATED TUBE FOR USING ELECTRO PLATING

August 25, 2022 at 10:45 AMPlatinised

Platinum tubing with different aspects including round, rectangular, square, and oval in various standard measurements from 0.02 to 6.0 inches and wall thicknesses from 0.003 to 0.500 inches. Tubing can be additionally handled to create rings, washers, sleeves and sheaths. Custom arrangements are additionally accessible. Materials incorporate most metals including the uncommon earth metals and other high level materials. Cylinders can likewise be created from custom combinations for business and exploration applications and for new exclusive innovations. Other accessible shapes incorporate bar or plate structure, as well as exclusively machined shapes and through different cycles, for example, nanoparticles and as arrangements and organometallics.

What is platinum plating used for?

Platinum electroplating is used to coatelectrodesthat are used in the water purification, refining of oil, and in the manufacturingof fertilizers, acids, and explosives. The automotive industry uses platinum-plated catalytic converters to treat automobile exhaust emission.

Platinum Plated Valve Specifications:-

Material -   Titanium Tube

Usage / Application – Electro Plating

Brand – Tiaano

Color – Silver White

Form – Titanium Tube

Purity – 99.99%

Shape – Custom made all Shapes

Country of Origin – Made in India

Platinum Thickness – 4 to 6 Micron

VALVE MESH TUBE

TITANIUM / PLATINUM / MMO PLATING - NICKEL CHROME APPLICATION

August 20, 2022 at 3:22 PMPlatinised

Platinum plated titanium anodes have been effectively utilized in hard-chrome plating. However long reasonable electrolytes are utilized, a totally without lead process is generally conceivable without over the top expenses by just supplanting lead anodes with Pt/Ti anodes. Plating anodes utilizing high-temperature electrolysis offers two extra environmental advantages: Considerably longer life expectancy in light of better sturdiness.

Nickel plating is the process of electrolytically depositing a layer of nickel onto a substrate. These nickel deposits are used for:

Wear resistance

Corrosion resistance

Hardness

Lubricity

Magnetic purposes

MMO COATED & PT ANODE

TITANIUM PLATED MESH - PLATINUM PLATED MESH ANODE

August 9, 2022 at 12:25 PMPlatinised

Platinum coated (Platinized) Titanium Anodes are highly conductive anodes used in electroplating and other electronic applications. Platinum coated Titanium Anodes are generally immediately available in most volumes and can be fabricated in forms such as sheet, mesh, perforated plate, rod, or wire. We can also produce materials to custom specifications by request and research applications and new proprietary technologies.

Operation:-

Platinized anodes can be operated at very high current densities greater than 75A / dm²are typical. All of the current flows from the platinum coated portion of the anode surface. However, if this coating is damaged, current may also flow from the substrate material resulting in its premature failure. The primary limitation of platinized anodes is that the oxide film on the substrate can break down if excessive anode-to-electrolyte voltages are encountered. The practical limit for platinized titanium is 12 volts. Platinized niobium can be used at potentials as high as 100 volts.

Features of Platinum Plated Titanium Expanded Mesh Anode:-

Various shapes and sizes are available, including plates, Tube, rods and mesh.

Recovery and re-plating service available, Superior corrosion resistance.

Uniform current distribution and Superior catalytic nature.

Good thermal conductivity, High mechanical stability and No breakdown products build-up.

Related Applications:-

PCB Copper Plating

Jewelry electroplating bath or Gold Electroforming Anodes

Electronics and semiconductor industry;

Precious and non- precious metal electroplating.

Please contact us above for information on specifications, lead time and pricing

platinum plated mesh

PLATINIZED TITANIUM ANODES - TITANIUM PLATED SHEET

July 29, 2022 at 4:18 PMPlatinised

Tiaano manufacturing different sizes and Shapes (Multi slot, Multi hole, Perforated, Slotted, Mesh etc) of platinised Titanium Anodes and Platinized Niobium Anodes for Electro Plating. Platinised titanium anodes combine the excellent electrochemical characteristics of platinum with the good corrosion qualities of titanium.  This anode is designed for Electro Plating application.

The advantage that these Titanium Anodes have over the two previous anode types and lead anodes is that the risk of additional toxic or hazardous substances being introduced into the electroplating line is eliminated, eradicating costs that arise from the removal of hazardous substances. They are also environmentally friendly and the fact that the inter-electrode gap remains constant throughout the design life of the anode means that the Titanium Anodes maintain constant voltage and product quality. Oxygen-evolving Titanium Anodes have lower anodic operating potentials and use of these anodes yields the additional advantage of the ability to re-use the anodes. Once the anodes have reached the end of their design life the necessary repairs can be made, the anodes can be cleaned and then re-coated.

Major Advantages of Platinized Anodes in Electro Plating Industry:-

Typical Applications of Platinized Anodes are Gold plating-Jewellery Jewels, Printed circuit board industries, chrome plating, Hard Chrome plating, Fuel cell, Rhodium plating, Iron plating, Anodising plant, Copper plating, Silver plating, Ohmic heating of food, Sensing elements, Gold electroforming, Electro refining or , Electro galvanizing, Palladium plating, Nickel/Zinc/Tin plating, Cathodic Protection, Electrodialysis, electro chlorination.

Common Advantages of Platinized Titanium Anodes:-

•          Electrochemical inertness,

•          Mechanical strength,

•          Workability and favorable electrical conductivity.

•          Dimensional stability, long durability of base material

•          Application-specific design

•          A low consumption rate that conserves precious platinum

•          Resistance to oxidation

•          High chemical stability

The platinized anode is characterized by its three outstanding effects as an electrode material:

1. It is stable, corrosion resistant and can be used in various media.

2. For the oxygen evolution reaction, the over potential is very high

3. For the hydrogen evolution reaction, the over potential is very low.

Platinized_Titanium_Anodde

Platinum Coated Titanium Mesh Anode – Hard Chrome Plating Anode

July 19, 2022 at 10:46 AMPlatinised

Platinum is one of the valuable metals. Platinized titanium anodes are broadly utilized in Electro Plating, metal finishing, metal recuperation processes. They have effectively supplanted lead anodes in electroplating applications because of their lower utilization, layered exactness, capacity to frame exact store thicknesses on wanted mathematical shapes, unsurprising plating science and simplicity of upkeep. These anodes can be planned and framed with different calculations in light of the parts to be electroplated.

For top notch electroplating anodes, produced to client particulars and configuration, Electroplating is utilized to plating specific metals with a slender layer of an unadulterated metal, similar to copper, chromium, platinum, nickel, palladium silver, zinc, gold or any of a few composites. During the cycle, an electric flow goes through an answer known as an electrolyte. The structure of the electrolyte relies upon the ideal covering. The thing being electroplated (cathode) is submerged into the electrolyte arrangement, just like the plating anode.

Tiaano assembling and providing Platinised Titanium Mesh Anode (with outline, electrical connector and Hook) and uniquely crafted anodes for Electro plating Application. We have the office to do platinum plating 0.5 micron to 20 micron thick by the course of Electro statement. We likewise do replating of existing titanium mesh.

 Platinized Titanium & Niobium Anode (Dimensionally Stable Anode)

hard_chrome_Plating_Anode

Platinum Plated Titanium Ionization Electrode

June 30, 2022 at 10:07 AMPlatinised

The Platinum Titanium terminals make the ionization, the electrode cell is the core of an ionizer. It comprises of a progression of terminals (plates), each isolated by a layer. The Platinized Titanium Anode is for the most part utilized, on the grounds that it has extraordinary viable execution, for example, solid capacity of ionization discharge, great trade of electrolyte, close design and light weight, and so on.

Anode Side: Platinum Plated Titanium Anode

Positively charged particles accumulate at the negative terminal to make decreased water, which concentrates accessible antacid minerals, for example, calcium, magnesium and potassium from the source water. This soluble ionized water is drawn for drinking and cooking, through the really treated steel ramble.

Cathode Side: Platinum Plated Titanium Cathode

Negatively charged particles accumulate at the positive anode to make oxidized water, which concentrates corrosive minerals like nitrates, sulfides, chlorides, and fluorides from the source water. This corrosive ionized water has a horde of outer purposes. It is released into the sink.

Benefits of Platinized Titanium Anodes in Ionization:-

Platinized anodes are having high current resistance

Practical because of least platinum prerequisite

Platinised anode is extremely high layered dependability

Platinum Plated anodes are having better conduction properties

Platinum Coated anodes are having long life

Platinum_Plated_Titanium_Ionization_Electrode

PLATINIUM PLATED TITANIUM TUBE ANODE FOR ELECTRO PLATING APPLICATION

May 7, 2022 at 11:18 AMadmin

Platinised titanium anodes combine the outstanding electrochemical characteristics of platinum with the good corrosion qualities of titanium.  This anode is designed for hard Chrome Plating application.

Tiaano offers superior quality range of Platinized Titanium Anode. In adherence to the set industry standards, our provided anode is well-manufactured using high grade raw material and latest technology. Owing to its corrosion-free and fine finish, to ensure the best quality, the offered anode is stringently tested by our quality experts against different quality parameters.

Types of platinum Plated Anodes provided by Tiaano:-

          Platinized / Platinised Mesh Anode

          Platinum Covered Titanium Sheet Anode

          Platinum faced Titanium Rod Anode

          Platinum plated Slotted Sheet Anode

          Platinum Coated Titanium Tube Anode

          Platinum covered Titanium Perforated Sheet Anode

          Platinum deposited Titanium Wire Anode

  Advantages of Platinized Anodes:-

          Available in numerous anode configurations

          Exceptionally long life

          Light weight

          Good mechanical properties

          Uniform conductivity

Platinum_Plated_Tube_Anode
