Platinized Titanium & Niobium Anode Dimensionally Stable Anode

Tiaano offers a broad range of Titanium Anodes with pure platinum plating and MMO Coating. Anode is a key component of the electrolysis and Electro chemical process. Electrolysis anode has numerous advantages when compared to the other metal anodes. Some of these advantages include weight, durability, and corrosion resistance.

Technical characteristics: high current efficiency; excellent corrosion resistance; long electrode life; electrode shape can be designed according to user needs; electrode substrate can be reused several times; no pollution to the medium (electrolysis); can withstand higher Current density.

Major benefit of the Platinum plated Titanium Anode is that they require no touching up due to the dimensional stability of Pt/Ti anodes and the high-temperature electrolysis that allows up to 99.99% purity in platinum coatings, as well as excellent adhesion and ductility.

Platinum is a catalyst, and is needed to speed up the electrolysis. With the water ionizers changing the water so drastically just by passing the water over the electrodes, the ionization process wouldn’t occur without a speeder-upper.

Platinized Titanium & Niobium Anode (Dimensionally Stable Anode)

Project Details:-

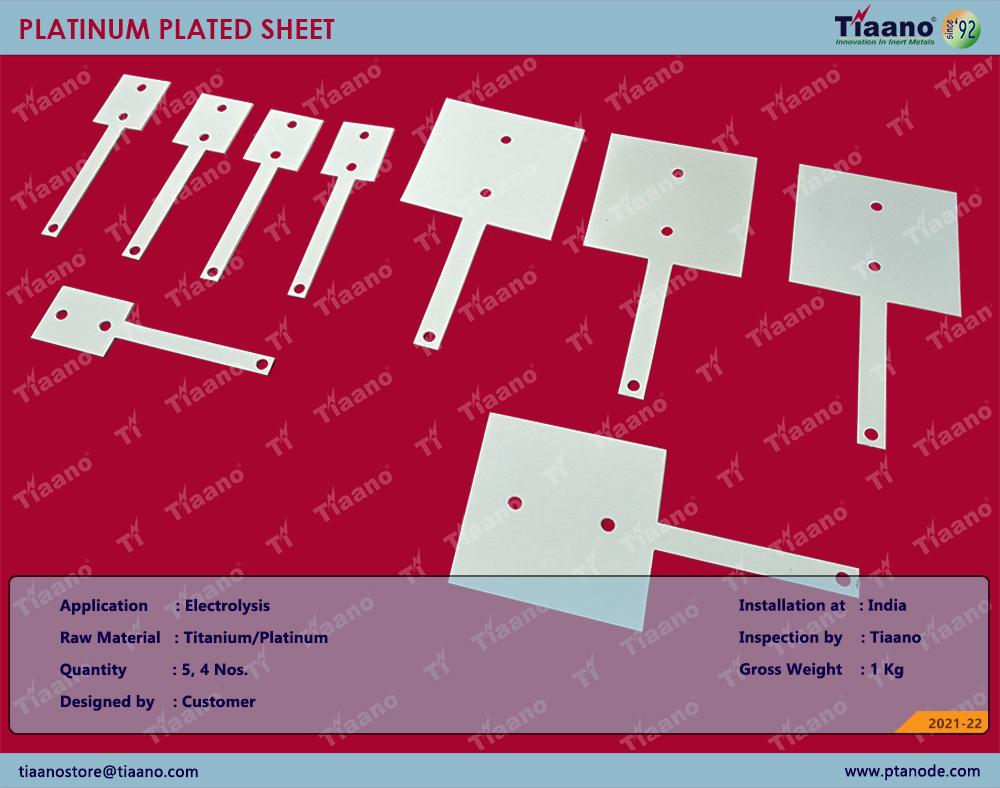

Tiaano: Manufacturer and Supplier of Platinum Plated Titanium Sheet Anode.

Anode: Electrolysis Anode, Electro Plating Anode, Platinum Plated Titanium Anode

Application: Electro Chemical, Electrolysis, Electro Plating

Installation at: India,

Inspection by: Tiaano.

You may refer more details from here:-

Facebook Page, Instagram Page, Twitter Page, Pinterest Page

Tiaano is a leading design and manufacturing company that provides unique services of Anode design and manufacture and technical services. We are also provide the high quality range of Advanced technology platinum plating service on Titanium, Niobium, Tantalum substrate to our clients.

Also Tiaano manufacturing different sizes and Shapes of platinized Anodes for water Deionisation. Water Deionizer Electrodes [Anodes or Cathodes] are available with hanging hook, frame or band in the form of sheet, expanded mesh, pipe, rod and custom size.  Deionized water is also called demineralized water. The majority of water impurities are dissolved salts, deionization results in high purity water that is generally similar to distilled water.

Water Deionization Process:-

Among all common water filtration methods, the process used for removal of all dissolved salts from water is referred to as deionization. Deionization requires the flow of water through two ion exchange materials in order to affect the removal of all salt content.

The terms demineralization and deionization are used somewhat interchangeably by the industry. While the term demineralization is generally better understood, deionization is especially suit.

Platinized Titanium & Niobium Anode (Dimensionally Stable Anode)

Project Details:-

Tiaano: Manufacturer and Supplier of Platinum Plated Titanium Sheet Anode.

Anode: Water deionization Anode, demineralization Anode, Water Iron Removal Anode, Water deionisation Anode

Application: Water deionization, demineralization, Water Iron Removal, Water deionisation

Installation at: India,

Inspection by: Tiaano.

You may refer more details from here:-

 Facebook Page, Instagram Page, Twitter Page, Pinterest Page

Tiaano offers wide range and types of Platinized Titanium Anodes for various Electro Chemical and Electrolysis Application. Platinum titanium anode is an insoluble anode, platinum plating and titanium substrate with a solid and stable performance.

Technical characteristics of Titanium Anode : high current efficiency; excellent corrosion resistance; long electrode life; electrode shape can be designed according to user needs; electrode substrate can be reused several times; no pollution to the medium (electrolysis); can withstand higher Current density.

Electrolysis Process : Electroplating, Electro Winning or electroextraction, Electrosynthesis, Electrodialysis, Drinking Water electrolysis, Cathodic Protection, Sodium Hypochlorite, HHO Generator, Swimming pool disinfectant, Perchlorate protection, Chlor-alkali industry etc...

Platinized Titanium & Niobium Anode (Dimensionally Stable Anode)

Project Details:-

Tiaano: Manufacturer and Supplier of Platinum Plated Titanium Sheet Anode.

Anode: Electrolysis Anode, Electro Plating Anode, Platinum Plated Titanium Anode

Application: Electro Chemical, Electrolysis, Electro Plating

Installation at: India,

Inspection by: Tiaano.

You may refer more details from here:-

 Facebook Page, Instagram Page, Twitter Page, Pinterest Page

Tiaano is one of the key manufacturers of Titanium Based Anodes with Platinum Plating and MMO Coating. The company first began its operation in 1992, when it was founded as a manufacture for Titanium anode through commitment and a hard work ethic.

Platinum is one of the precious metals. Platinized titanium anodes are extensively used in Electro Plating, metal finishing, metal recovery processes. They have successfully replaced lead anodes in electroplating applications due to their lower consumption, dimensional accuracy, ability to form precise deposit thicknesses on desired geometric shapes, predictable plating chemistry and ease of maintenance. These anodes can be designed and formed with various geometries based upon the parts to be electroplated.

Advantages of platinized Titanium Anode:-

Platinized Anode è Long operating life; maintenance-free.

Platinised Anode è Economical due to low platinum requirements.

Platinum plated Anode è High dimensional stability and load resistance.

Platinum Coated Anode è Good current distribution.

Platinum Covered è High corrosion resistance.

Platinum Faced Anode è Low weight.

 Platinized Titanium & Niobium Anode (Dimensionally Stable Anode)

Project Details:-

Tiaano: Manufacturer and Supplier of Platinum Plated Titanium Multislot Anode.

Anode: Platinum Plated Multislot Anode, Platinum Plated Multihole Anode, Platinum Plated Half Ring Anode,

Application: Electro Plating

Installation at: India,

Inspection by: Tiaano.

You may refer more details from here:-

Facebook Page, Instagram Page, Twitter Page, Pinterest Page

Ti Anode Fabricators Private Ltd, is a professional manufacturer of platinum electrodes with 2 decades of technical experience. The platinum electrodes produced for hydrogen-rich electrode are of strong corrosion resistance, stable performance, high output current density, low working voltage and long working life characters.

The core part of hydrogen electrolysis equipment is electrolytic cell, while the electrode material is the key to the electrolytic cell. As the anode area is of strong acid character in the process of electrolysis, the electrode must be acid and corrosion proof. Therefore, it cannot use nickel, iron and other cheap materials, but to use platinum-plated Titanium electrode.

What is Hydrogen Rich Water? Why Hydrogen Rich Water is needed?

Water is an indispensable component of human body, but 99.9% of the Earth's available water resources are lacking of hydrogen. The hydrogen-rich water which can help people remove free radical is little. It is because of the hydrogen-rich water's antioxidant properties and scarcity, the production of hydrogen-rich water is necessary.

Electrolysis of water, that is, water generates hydrogen and oxygen through the direct current power. Some hydrogen is dissolved into water in electrolysis process, and the hydrogen-rich water is formed. The water dissolved water has a strong reduction capability. It can neutralize the body's blood and cells of reactive oxygen species (free radicals), remove the free radicals in the skin of the body.

Platinum is a noble metal hence we used platinum as an anode in electrolysis process. Platinum is used in electrochemical cells because it is resistant to oxidation- it will not easily react, which makes in excellent as an electrode. Platinized anodes can be operated at very high current densities. 100 Amperes per square foot are typical. All of the current flows from the platinum coated portion of the anode surface. However, if this coating is damaged, current may also flow from the substrate material resulting in its premature failure. The primary limitation of platinized anodes is that the oxide film on the substrate can break down if excessive anode-to-electrolyte voltages are encountered. The practical limit for platinized titanium is 12 volts. Platinized niobium can be used at potentials as high as 100 volts.

Features of Platinized Titanium Mesh Anode for Electrolysis:

1. High corrosion resistance

2. High current efficiency

3. Long working life

4. After the electrode is deactivated, the matrix can be repeated

5. High current density and high production efficiency

6. Light weight of Anode

Platinum Plating Technology: In the manufacture of most platinum electroplated titanium, the titanium is first chemically etched to form a surface with reentrant angles – to aid the mechanical adhesion of subsequently applied coatings. Even this simple process of chemical roughening has involved much development.

Ti Anode Fabricators Private Ltd, is a professional manufacturer of platinum electrodes with 20 years of technical experience. The platinum electrodes produced for hydrogen-rich electrode are of strong corrosion resistance, stable performance, high output current density, low working voltage and long working life characters.

The core part of hydrogen electrolysis equipment is electrolytic cell, while the electrode material is the key to the electrolytic cell. As the anode area is of strong acid character in the process of electrolysis, the electrode must be acid and corrosion proof. Therefore, it cannot use nickel, iron and other cheap materials, but to use platinum-plated electrode.

Platinized Titanium & Niobium Anode (Dimensionally Stable Anode)

Project Details:-

Tiaano: Manufacturer and Supplier of Platinum Plated Titanium Sheet Anode.

Anode: Platinum Plated Anode, Platinum Plated Sheet Anode, Platinized Sheet Anode

Application: Ionization, Ionization Machine, Hydrogen Rich Water machine

Installation at: Andra Pradesh, India

Inspection by: Tiaano.

Tiaano, offers platinum plating with long life-times and low operating potentials for service in Chlor-alkali cells. Tiaano® a  leading  design and fabrication  company  established  in 1992 with well-equipped in plant facilities and qualified engineers, delivers Platinum Plated Anodes, DSA Titanium anodes and Nickel cathodes – both Refurbishment, Recoated and Zero gap Retrofitting by using Precious metal oxides of Platinum, Iridium, Ruthenium, Palladium etc.

We, Ti Anode Fabricators Pvt Ltd. (Tiaano), Supply and Fabrication of Membrane Electrolyzer to our customer requirement. Membrane electrolyzer with zero space between positive element & negative element, cell type is bi-polar Anode and Cathode.

 Tiaano’s recent supply Membrane Electrolyzer - Anode and  Cathode assembly for Chlor Alkali Plant….

The applications of chlor alkali plant for..

Titanium Based Electrolyzer.

Membrane Cell.

Anode & Cathode or Electrode Assembly

Repair & Recoating of Anode and Cathode.

Zero Gap Retrofit.

General Advantages of Titanium Electrolyzer:-

Lower power consumption, longer anode life, Stability of electrodes during electrolysis, Elimination of environmentally harmful materials, relatively consistent and stable cell room operation, Reduction in labor.

Platinized Titanium & Niobium Anode (Dimensionally Stable Anode)

Project Details:-

Tiaano: Manufacturer and Supplier of Platinum Plated Titanium Expanded mesh Anode.

Anode: Platinum Plated Mesh Anode, Platinum Plated Metal Mesh Anode, Platinized Expanded Mesh Anode

Application: Gold Plating, Electro Forming, Jewellary Plating

Installation at: Jaipur, India.

Inspection by: Tiaano.

You may refer more details from here:-

Facebook Page, Instagram Page, Twitter Page, Pinterest Page

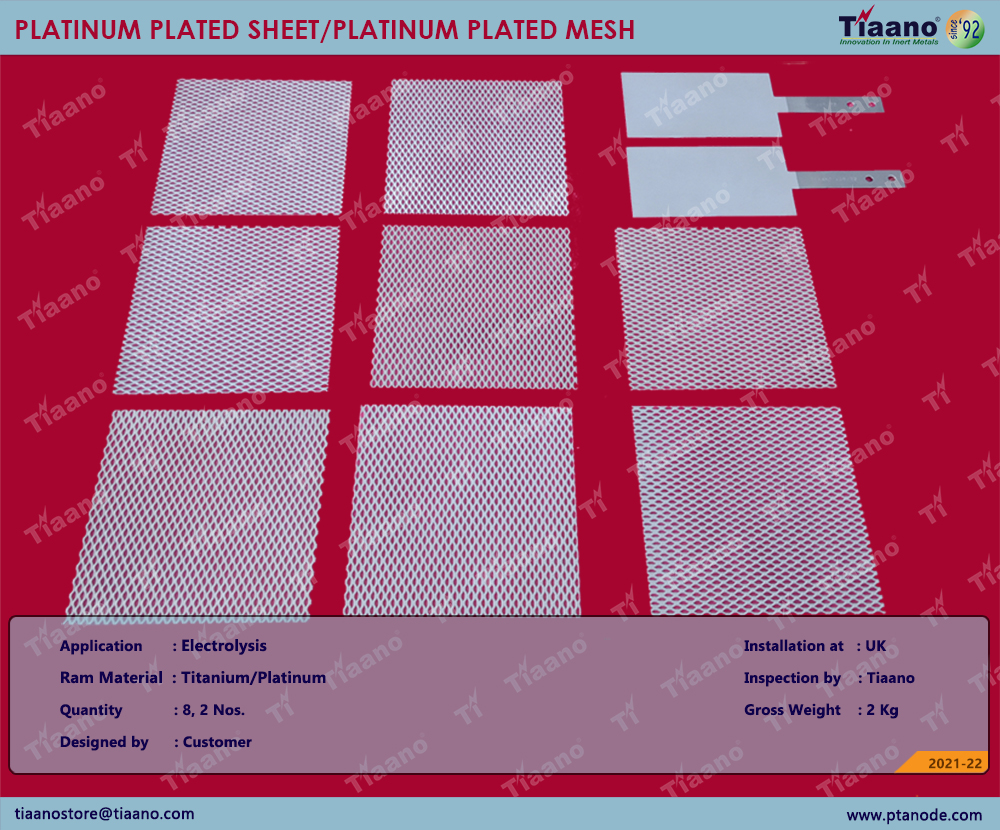

Tiaano offers Platinum Plated Titanium Mesh Anode for Electro Plating Applications. Pt/Ti anodes made from expanded metal Mesh. The expanded metal mesh allows optimal electrolyte movement. The distances between the anode and the cathodic component can be reduced, and the current density increased. The result: better quality in a shorter time.

Feature of Platinum Coated Titanium Mesh Anode:-

Effective, environmental and quick method of electroplating

High current efficiency

High anti-corrosion property

Long working or Design life

Keep the operating voltage stably

Small size and light weight

Replating Possible

Configuration of Anode and Cathode:-

The negative (-) cable is connected to the item to be plated, the cathode.  The Positive (+) lead is connected to the solution electrode, the anode. In this configuration the piece being plated should be rotated occasionally since the deposition rate may be greater on the areas that are facing the anode and less on the side opposite the anode.

 Platinized Titanium & Niobium Anode (Dimensionally Stable Anode)

Details of Platinum Plated Titanium Expanded Mesh Anode:-

Tiaano: Manufacturer and Supplier of Platinum Plated Titanium Expanded mesh Anode.

Anode: Platinum Plated Mesh Anode, Platinum Plated Metal Mesh Anode, Platinized Expanded Mesh Anode

Application: Gold Plating, Electro Forming, Jewellary Plating

Installation at: Jaipur, India.

Inspection by: Tiaano.

You may refer more details from here:-

Facebook Page, Instagram Page, Twitter Page, Pinterest Page

Tiaano offers Platinum Plated Titanium Electrolyzer for Electro chemcical application.  Platinum coated (Platinized) Titanium Anodes are highly conductive anodes used in electroplating, fuel cells, Pharmaceuticals and other electronic applications. Platinum coated Titanium Anodes are generally immediately available in most volumes and can be fabricated in forms such as sheet, mesh, perforated plate, rod, or wire. Tiaano can produce most materials in high purity and ultra high purity forms and follows applicable ASTM testing standards. We can also produce materials to custom specifications by request, in addition to custom compositions for commercial and research applications and new proprietary technologies.

What Does Platinized Titanium Anode Mean?

A platinized titanium anode is simply a titanium anode coated with platinum or platinum metal oxides. Platinized titanium anodes act as inert anodes and are non-consumable and long lasting. These anodes are insoluble in the electrolyte under the conditions present in electrolysis.

What Does Titanium Anode Mean?

A titanium anode is a positively charged electrode made from the element titanium. Titanium has the chemical symbol Ti and the atomic number 22.

Some applications where these anodes are used:-

•          Sewage treatment plants

•          Electrosynthesis/chlorate and perchlorate production

•          Eectro-chlorination

 •          Electroplating and cathodic protection

Platinized Titanium & Niobium Anode (Dimensionally Stable Anode)

Details of Platinum Plated Titanium Expanded Mesh Anode:-

Tiaano: Manufacturer and Supplier of Platinum Plated Titanium Electrode Assembly or Electrolyzer

Electrolyzer: Platinum Plated Titanium Anode and Cathode, Platinum Plated Titanium Electrode Assembly, Platinized Electrolyzer

Application: Electro Chemical Production, Pharmaceuticals

Installation at: Chennai, India.

Inspection by: Tiaano.
