Platinized Titanium & Niobium Anode Dimensionally Stable Anode

Platinized Titanium or Niobium Electrodes (Anodes and cathodes) are the workhorses of many laboratories applications, especially for the research and development for biomedical field. They are regarded as being stable to anodic dissolution, and it is expected that platinum coated titanium, either plated. It will be a cost effective, industrially useful alternative to bulk platinum metal.

Tiaano platinized titanium Wire anode is simply a titanium anode plated with pure platinum or platinum metal oxides. Platinized titanium anodes act as inert anodes and are non-consumable and long lasting.

Benefits for Platinized Anodes (Substrate Niobium or Titanium):-

Platinized titanium anodes / Platinised Niobium Anodes are very frequently used as expanded metal anodes due to their excellent characteristics of …..

High throwing power, Good electrolyte exchange

Compact construction, Low weight, Low maintenance

Energy saving potential, high electrical conductivity

Resistance to oxidation, High chemical stability

You may refer more details from here:-

Facebook Page: https://www.facebook.com/platinizedAnode

Instagram Page: https://www.instagram.com/pt_anode/

Twitter Page: https://twitter.com/pt_anodes

Pinterest Page: https://in.pinterest.com/TiaanoPtAnode/pins/

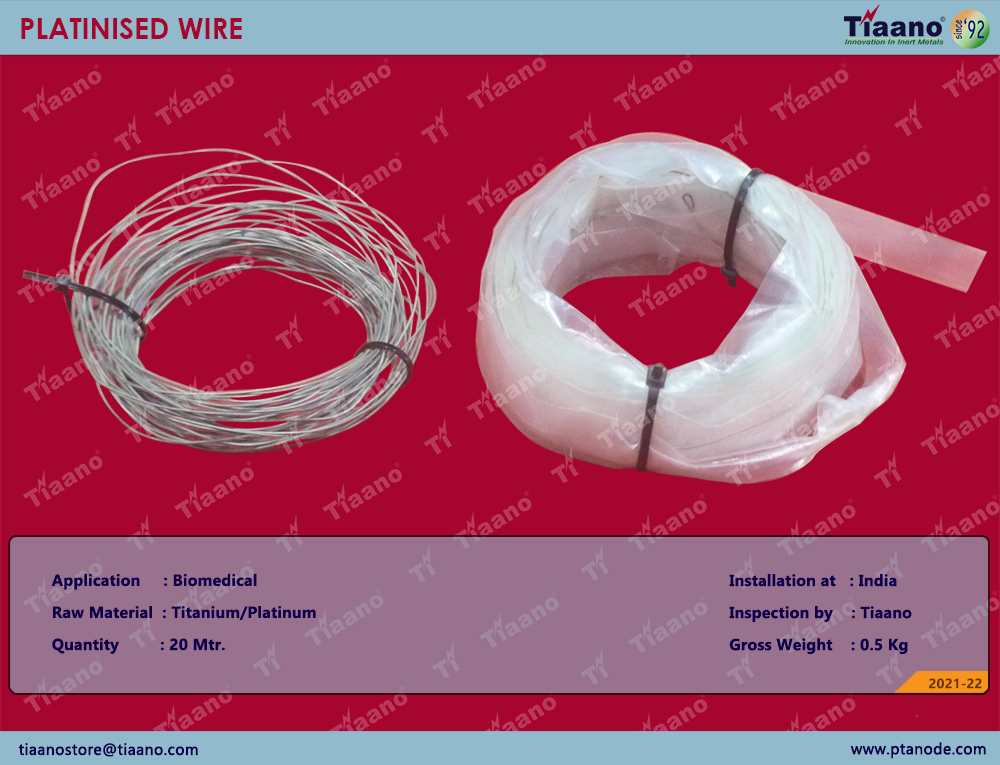

Details of Platinum activated Titanium wire Anode:-

Tiaano: Manufacturer and Supplier of Platinum Activated Titanium Wire Anode

Year of Established: 1992

Anode Application: Biomedical, Electro Chemical Process, Chemical Production

Installation at: Chennai, India.

 Inspection by: Tiaano

Refer more details here: http://ptanode.com/post/Platinum-Plated-Titanium-Wire-Anode-for-Biomedical-Application.aspx

 http://ptanode.com/Chemical_Anodes.aspx

Platinized titanium anode is a significant component of the Electro plating machine, and the quality of the metal electrode directly affects the quality of the overall plating equipment. Our company uses the latest Electro deposition process to do the plating. So the precious metal and the titanium substrate are well combined. Because a variety of platinum group noble metals are added to the plating or coating, the current efficiency is high, the electrical conductivity is good.

Benifits of the Electro Plating Anode (Platinum Coated Titanium):-

Platinum Plated titanium Platinum Coated Niobium anodes provide a cost effective replacement for lead anodes in hard chromium plating. They provide superior quality deposition and consistency resulting in increased productivity and throughput. Cost benefit analysis demonstrates that the higher initial investment in this technology can be recouped within a short period of time.

•         Low weight, good current resistance, Long life operation, maintenance free, Economical - due to low platinum requirements.

•         High dimensional stability and low resistance, highly suitable as anodes of custom made shapes.

You may refer more details from here:-

Facebook Page: https://www.facebook.com/platinizedAnode

Instagram Page: https://www.instagram.com/pt_anode/

Twitter Page: https://twitter.com/pt_anodes

Pinterest Page: https://in.pinterest.com/TiaanoPtAnode/pins/

Platinum Plated Titanium Wire Anode:-

Tiaano: Manufacturer and Supplier of Platinized Titanium Wire Anode

Year of Established: 1992

Anode Application: Electro Plating, Gold Plating, Rhodium Plating, Metal Finishing etc…

Installation at: United Kingdom

 Inspection by: Tiaano

Refer more details here: http://ptanode.com/MetalFinishingAnode.aspx

We (Tiaano) produce titanium base platinum plating anode by the special plating process and technology. We have the best the plating effect by controlling the temperature, concentration and current of the plating solution. That makes our production with a uniform smooth coating, bound firmly, large output current, long life and other advantages.

Tiaano platinised titanium anode is simply a titanium anode plated with pure platinum or platinum metal oxides. Platinized titanium anodes act as inert anodes and are non-consumable and long lasting. These anodes are insoluble in the electrolyte under the conditions present in electrolysis. These anodes are useful in biomedical application and other electrolysis application.

Common Benefits for Platinized Anodes (Niobium or Titanium):-

Platinized titanium anodes are very frequently used as expanded metal anodes due to their excellent characteristics of …..

Great throwing power

Good electrolyte exchange

Compact construction

Low weight, Low maintenance

Energy saving potential

High electrical conductivity

Resistance to oxidation

High chemical stability

The standard platinum thickness is 1.0 micron to 6.0 micron in case of higher loads layer thickness of up to 20 micron. The lifetime of platinized titanium or Platinized Niobium electrodes is in particular dependent on the work medium (electrolyte) and the anodic current. Platinized titanium anodes or platinized Niobium Anodes combine the excellent electrochemical features of platinum with the good corrosion qualities of titanium.

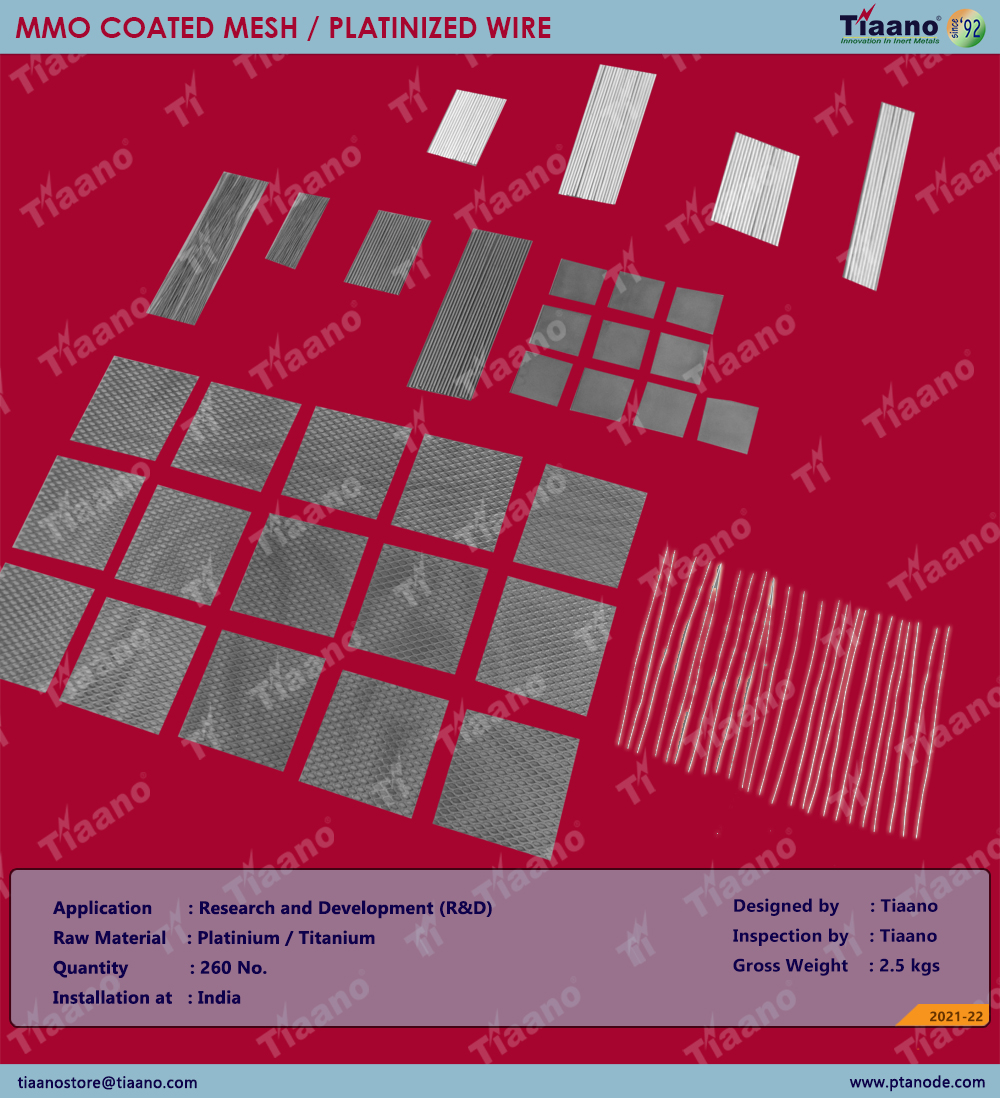

Types of Platinized Anodes for Electrolysis:-

•          Platinized Titanium Plate Electrode

•          Platinised Titanium Mesh Electrode

•          Platinum Plated Titanium Rod Electrode

•          Platinum activated Titanium Tube Electrode

•          Platinum coated Titanium Wire Electrode

§        Platinized Niobium Plate Electrode

§        Platinised Niobium Mesh Electrode

§        Platinum Plated Niobium Rod Electrode

§        Platinum activated Niobium Tube Electrode

§        Platinum coated Niobium Wire Electrode

Platinum plated Titanium or Niobium Electrodes (Anodes and cathodes) are the workhorses of many laboratories, especially for the research and development for biomedical field. They are regarded as being stable to anodic dissolution, and it is expected that platinum coated titanium, either plated. It will be a cost effective, industrially useful alternative to bulk platinum metal.

Tiaano platinum plated titanium Wire anode is simply a titanium anode plated with pure platinum or platinum metal oxides. Platinized titanium anodes act as inert anodes and are non-consumable and long lasting. These anodes are insoluble in the electrolyte under the conditions present in electrolysis.

Electrodes Usage:-

Electrodes for medical purposes: - Electrodes for electrophysiology techniques in biomedical research. Platinum being the most expensive material rational utilization of Platinum for the greater advantages ensures economical solution. Platinized Anodes is none but a rational utilization of platinum by plating limited quantity on to titanium to achieve the same result as using platinum metal.

Common Advantages for Platinized Anodes (Niobium or Titanium):-

Platinized titanium anodes / Niobium Anodes are very frequently used as expanded metal anodes due to their excellent characteristics of …..

High throwing power

Good electrolyte exchange

Compact construction

Low weight, Low maintenance

Energy saving potential,

High electrical conductivity

Resistance to oxidation,

High chemical stability

The standard platinum thickness is 0.5 micron to 5 micron in case of higher loads layer thickness of up to 20 micron. The lifetime of platinized titanium or Platinized Niobium electrodes is in particular dependent on the work medium (electrolyte) and the anodic current. Platinized titanium anodes or platinized Niobium Anodes combine the excellent electrochemical features of platinum with the good corrosion qualities of titanium.

Tiaano manufacturer and supplier of Platinum plated Electrode and MMO Coated Electrodes for various electrolysis application and Research and Development. In adherence to the set industry standards, our provided pt anode is well-manufactured using high grade raw material and latest technology.

Owing to its corrosion-free and fine finish, to ensure the good quality, the offered anode is severely tested by our quality experts. Tiaano Electrolysis Anodes consist of a titanium or Niobium based material in the form of expanded mesh, sheet, rod, wire, tube or pipe.

Platinum is the most active metal for any electro chemical or electrolysis process due to its current conducting property. Platinum being the most costly material logical utilization of Platinum for the greater value ensures economical solution. Platinized Anodes is none but a rational utilization of platinum by plating limited quantity on to titanium to achieve the same result as using platinum metal.

The standard platinum layer thickness is 0.5 micron to 5 micron in case of higher loads layer thickness of up to 20 micron. The lifetime of platinized titanium or Platinized Niobium anodes is in particular dependent on the work medium (electrolyte) and the anodic current. Platinised titanium anodes or platinized Niobium Anodes combine the excellent electrochemical characteristics of platinum with the good corrosion qualities of titanium.

They are characterized by the following features and provide more advantages: -

•          Long operating life even at high current density and repairs free

•          Economical due to quiet platinum requirements

•          Extreme dimensional stability and load resistance

•          Good current distribution

 •          High corrosion resistance and Energy saving potential
