Platinum Plated Titanium Electrolyzer or Electrode Assembly for Pharmaceuticals

January 13, 2022 at 10:37 AMPlatinised

Tiaano offers Platinum Plated Titanium Electrolyzer for Electro chemcical application.  Platinum coated (Platinized) Titanium Anodes are highly conductive anodes used in electroplating, fuel cells, Pharmaceuticals and other electronic applications. Platinum coated Titanium Anodes are generally immediately available in most volumes and can be fabricated in forms such as sheet, mesh, perforated plate, rod, or wire. Tiaano can produce most materials in high purity and ultra high purity forms and follows applicable ASTM testing standards. We can also produce materials to custom specifications by request, in addition to custom compositions for commercial and research applications and new proprietary technologies.

What Does Platinized Titanium Anode Mean?

A platinized titanium anode is simply a titanium anode coated with platinum or platinum metal oxides. Platinized titanium anodes act as inert anodes and are non-consumable and long lasting. These anodes are insoluble in the electrolyte under the conditions present in electrolysis.

What Does Titanium Anode Mean?

A titanium anode is a positively charged electrode made from the element titanium. Titanium has the chemical symbol Ti and the atomic number 22.

Some applications where these anodes are used:-

•          Sewage treatment plants

•          Electrosynthesis/chlorate and perchlorate production

•          Eectro-chlorination

 •          Electroplating and cathodic protection

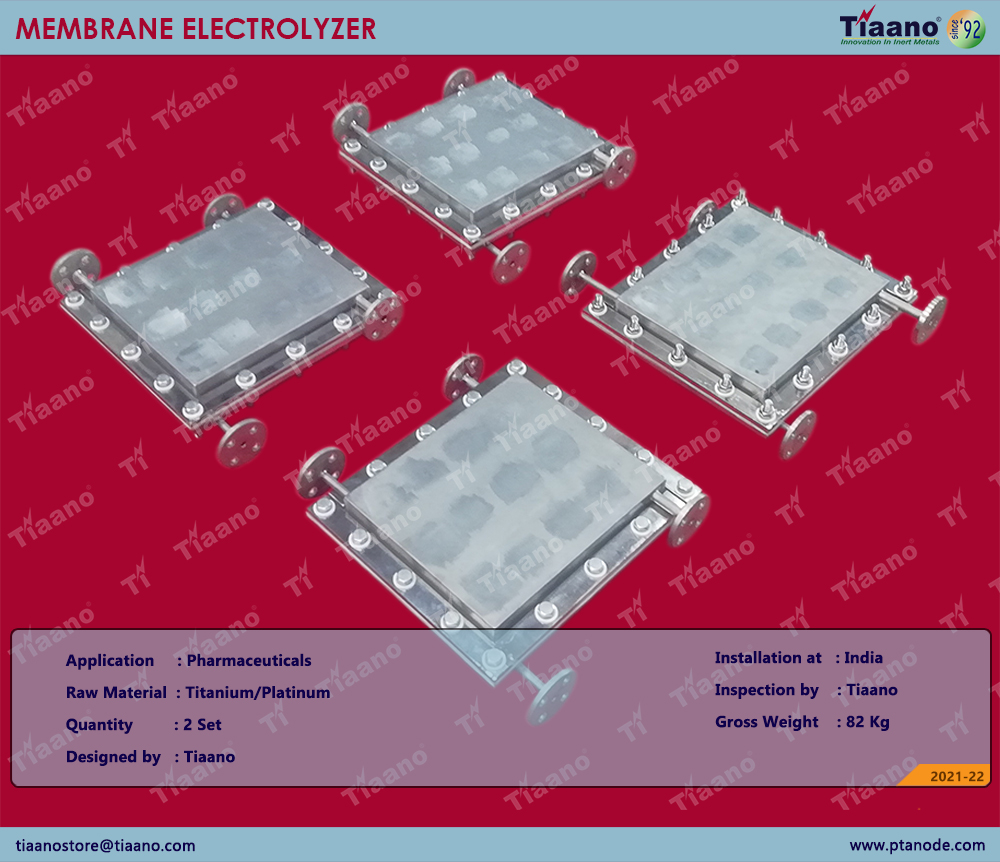

Platinum_plated_titanium_electrolyzer

Platinized Titanium & Niobium Anode (Dimensionally Stable Anode)

Details of Platinum Plated Titanium Expanded Mesh Anode:-

Tiaano: Manufacturer and Supplier of Platinum Plated Titanium Electrode Assembly or Electrolyzer

Electrolyzer: Platinum Plated Titanium Anode and Cathode, Platinum Plated Titanium Electrode Assembly, Platinized Electrolyzer

Application: Electro Chemical Production, Pharmaceuticals

Installation at: Chennai, India.

Inspection by: Tiaano.

You may refer more details from here:-

Facebook Page, Instagram Page, Twitter Page, Pinterest Page

PLATINISED TITANIUM SEAMLESS TUBE ANODE AND MONEL TUBE CATHODE FOR INSTRUMENT

May 17, 2021 at 5:19 PMPlatinised

Tiaano manufacturer of corrosion-resistant Platinized Titanium anodes and Monel Cathodes for Instruments / Chemical Producing Machine. Platinised Titanium Tube Anodes are composed of titanium tube substrate with a platinum layer plated on it. Platinized titanium tube anodes are designed with specific platinum material (Pt) which makes the anodes dimensionally stable for many years. Tiaano designs and manufacture platinised titanium tube anodes with different standard size and plating thicknesses. Tiaano have the facility to do platinum plating 0.5 micron to 20 micron thick by the process of Electro deposition.

Tiaano Platinized Titanium seamless Anodes are used in various applications. Tiaano have the facility to prepare Platinised Titanium, Platinised Niobium and Platinised Nickel alloys. We have the inplant production capacity of 20 m2 per day. We are exporting the anodes more than 64 countries.

Platinum plated titanium anodes have been successfully used in Electro plating. As long as suitable electrolytes are used, a completely lead-free process is usually possible without excessive costs by simply replacing lead anodes with Pt/Ti anodes. Plating anodes using high-temperature electrolysis offers two additional ecological benefits: Considerably longer life span based on better durability. Sparing use of platinum (which is made resistant to corrosion through high-temperature electrolysis). Re-platinization of the base substrate means that any existing platinum can be refurbished and reused, saving costs.

Another benefit of the Platinum plated anode is that they require no touching up due to the dimensional stability and the high-temperature electrolysis that allows up to 99.99% purity in platinum coatings, as well as excellent adhesion and ductility.

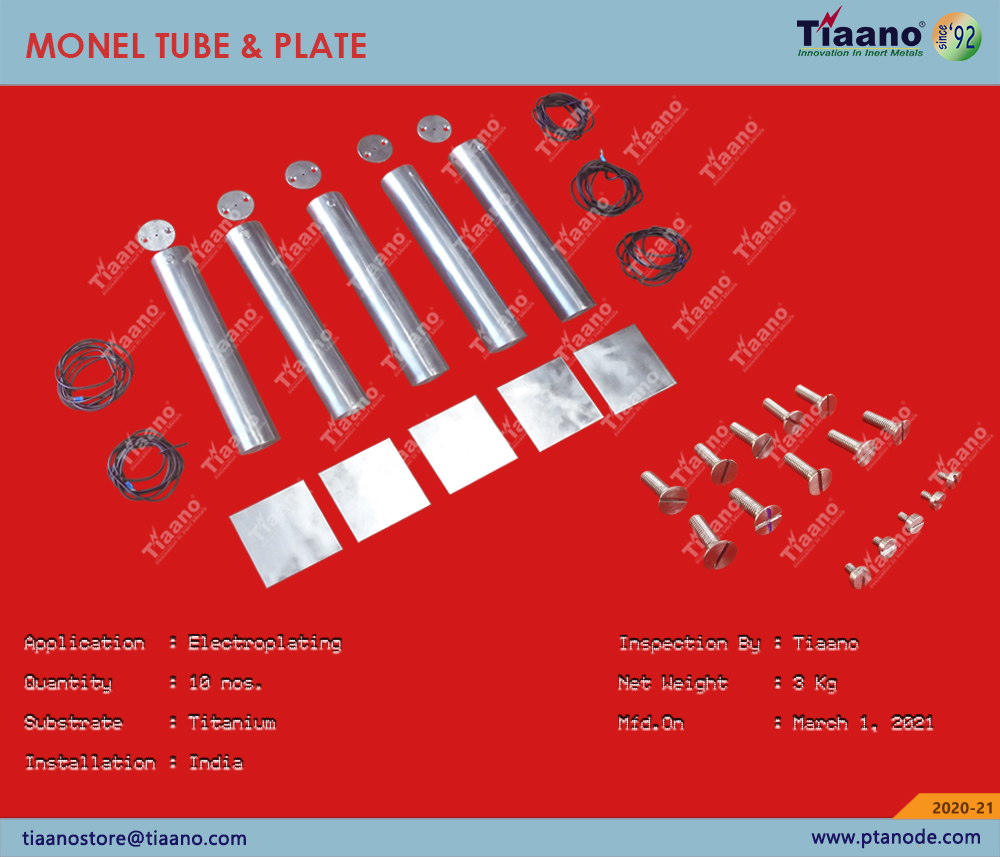

Platinised_Titanium_Seamless_Tube_Anode

PLATINUM TITANIUM CYLINDRICAL EXPANDED MESH ANODE FOR ELECTROPLATING - TIAANO MANUFACTURER AND SUPPLIER OF PLATINISED TITANIUM ANODES AND PLATINIZED NIOBIUM ANODES

March 27, 2021 at 5:14 PMPlatinised

Tiaano offer premium quality range of Platinized Titanium Anode and Platinised Niobium Anodes. In adherence to the set industry standards, our provided anode is well-manufactured using high grade raw material and latest technology. Owing to its corrosion-free and fine finish, to ensure the best quality, the offered anode is stringently tested by our quality experts against different quality parameters.

Major Advantages of Platinized Anodes in Electro Plating Industry:-

Typical Applications of Platinized Anodes are Gold plating-Jewellery Jewels, Printed circuit board industries, chrome plating, Hard Chrome plating, Fuel cell, Rhodium plating, Iron plating, Anodising plant, Copper plating, Silver plating, Ohmic heating of food, Sensing elements, Gold electroforming, Electro refining or , Electro galvanizing, Palladium plating, Nickel/Zinc/Tin plating, Cathodic Protection, Electrodialysis, electro chlorination.

Common Advantages of Platinized Titanium Anodes:-

          Electrochemical inertness,

          Mechanical strength,

          Workability and favorable electrical conductivity.

          Dimensional stability, long durability of base material

          Application-specific design

          A low consumption rate that conserves precious platinum

          Resistance to oxidation

          High chemical stability

The platinized anode is characterized by its three outstanding effects as an electrode material:

1. It is stable, corrosion resistant and can be used in various media.

2. For the oxygen evolution reaction, the over potential is very high

3. For the hydrogen evolution reaction, the over potential is very low.

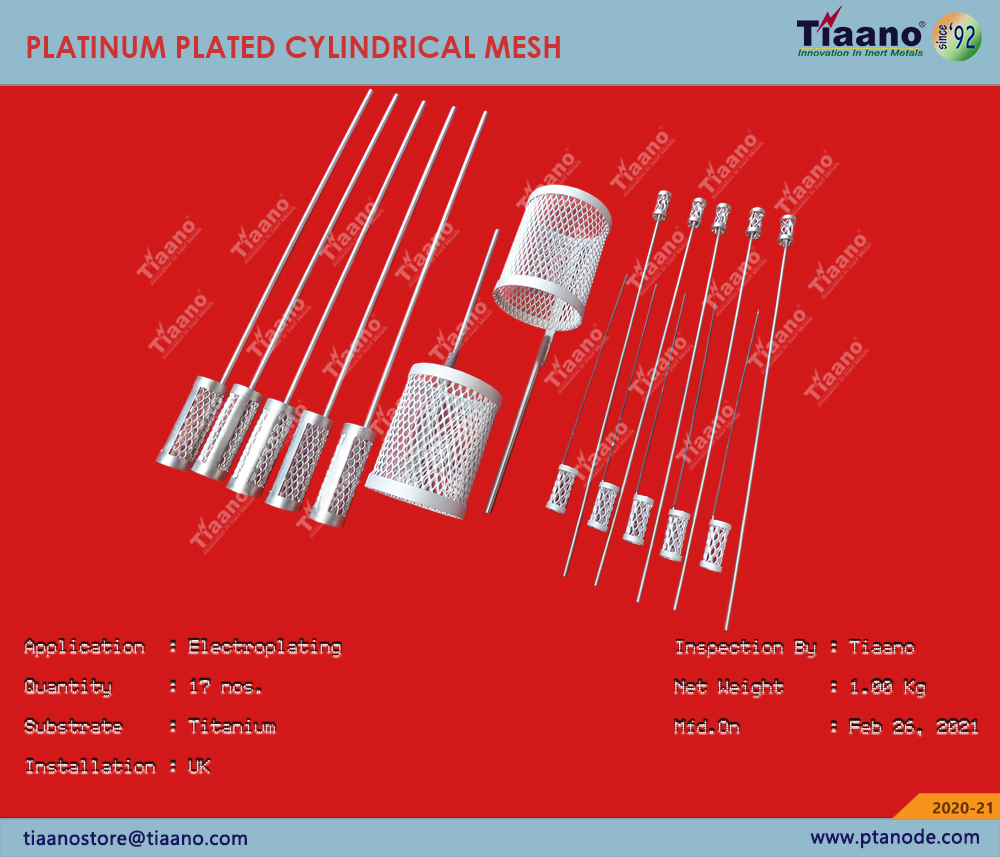

Platinum_Titanium_Cylindrical_Expanded_Mesh_Anode

PLATINUM PLATED TITANIUM MESH ANODE WITH SUPPORTING HOOK ASSEMBLY FOR ELECTRO PLATING - TIAANO MANUFACTURER AND SUPPLIER OF PLATINISED TITANIUM ANODES AND PLATINIZED NIOBIUM ANODES

February 2, 2021 at 9:41 PMPlatinised

Platinum is a precious metal having very good physical and chemical properties. Tiaano manufacturing and supplying platinized anodes are widely used for electroplating and electro winning industrial applications. Electroplating is used in a variety of industries for coating metal objects with a thin layer of a different metal. This electrochemical process requires anodes. There are as many types of anode compositions as there are applications. Platinized Titanium and platinised Niobium Electroplating anodes offer numerous benefits.

Electroplating anodes are used to create products in many industries, including the hydraulic industry. The most common uses for electroplated products are chrome-plated oil pump auger flights, hydraulic cylinders, conveyor flights, sheets and tanks where it would be impractical or too expensive to make the item entirely out of the plating metal.

Design for - Platinized titanium anode designed for use in electroplating baths for helium and palladium plating or acid gold solutions.

Adopt - The titanium mesh adopts electroplating machine and electrolyzed water, and the surface is effectively cleaned and activated by gold, silver and copper ornaments to clean the surface of the work piece.

Features - Titanium mesh is pure titanium material, which is not easy to dissolve, is not easy to change color, and has good electrical conductivity.

Can Be Bend - This platinized titanium mesh can be bent and hung on the edge of a heat-resistant glass beaker to allow the mesh portion to be immersed in the solution.

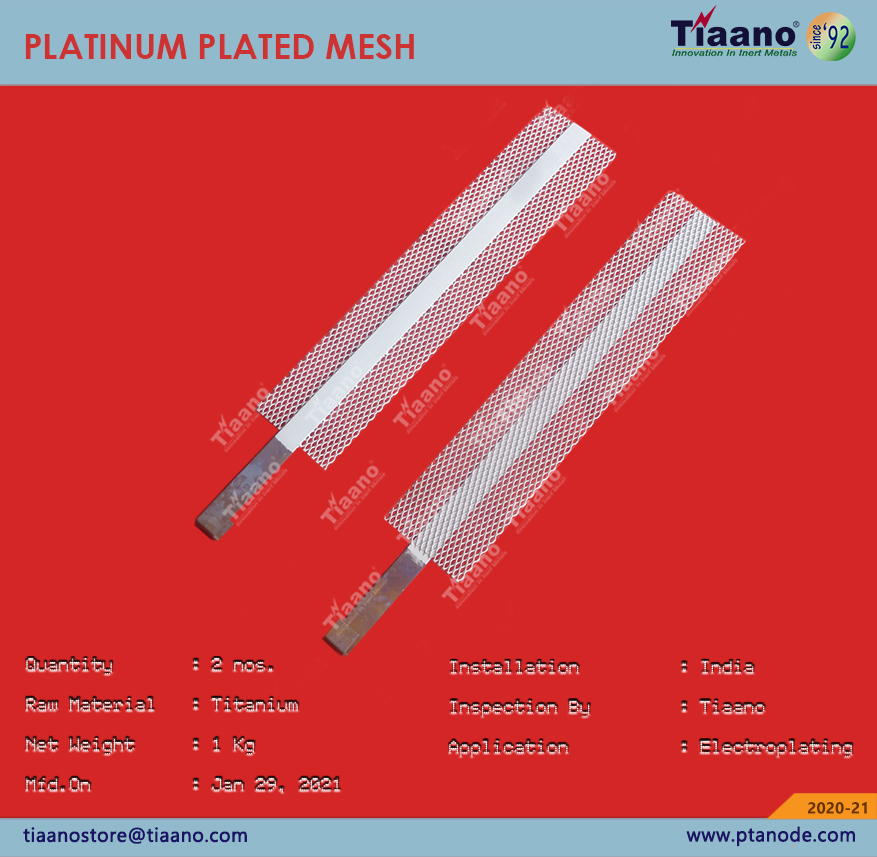

platinum_plated_titanium_mesh_Anode

PLATINIZED SHEET ANODE AND PLATINIZED WIRE ANODE FOR ELECTROCHEMICAL PROCESS (TIAANO CHENNAI, INDIA MANUFACTURER AND SUPPLIER OF PLATINISED TITANIUM ANODES AND PLATINISED NIOBIUM ANODES)

December 16, 2020 at 5:49 PMPlatinised

Platinum is widely used as electrodes in metal finishing industries due its advantage of having special chemical & physical properties like high corrosion resistance, thermal conductivity and catalytic nature.  Being a very expensive metal, instead of using solid form, platinum is deposited on the surface of titanium or niobium, occasionally on molybdenum by micron level layer.  Electrodes [Anodes or Cathodes] are available with hanging hook, frame or band in the form of sheet, mesh, pipe, wire, rod and custom built.  Platinised titanium anode is used in electrolytes having no fluoride. Platinised niobium anodes are used in electrolytes having fluoride, where we need better conduction (its conductivity is three times of titanium)  and also it is suitable for Sulphuric acid chromium plating bath operated at current density greater than 75A / dm².  Platinised titanium / niobium anodes are having the advantages of Low weight - good current resistance; Long life operation - maintenance free;      Economical - due to low platinum requirements; High dimensional stability and low resistance; Highly suitable as auxiliary anodes of complex geometrical shapes.

Platinum Features:-

Platinum is a lustrous silvery-white, malleable, ductile metal and a member of group 10 of the periodic table of the elements. It has the third highest density, behind osmium and iridium. Platinum is unaffected by air and water, but will dissolve in hot aqua regia, in hot concentrated phosphoric and sulphuric acids, and in molten alkali. It is as resistant as gold to corrosion and tarnishing. Indeed, platinum will not oxidize in air no matter how strongly it is heated.

Gains of Platinized Anode:-

Energy saving potential

Low weight (in particular expanded metal anodes)

Long service time even at high current density

Dimensional stability, long durability of base material

Replating possible

Higher quality of end product

Application-specific design

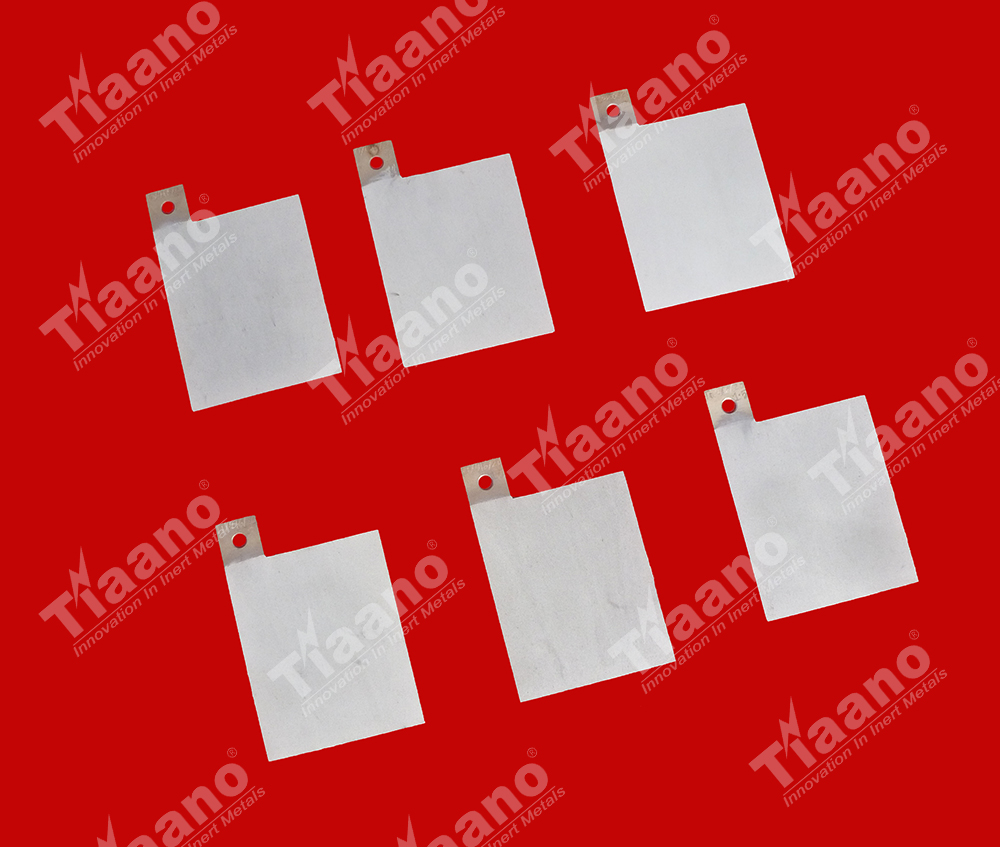

platinized_Sheet_Anode

PLATINUM PLATED COPPER ANODES FOR ELECTROLYSIS (TIAANO CHENNAI, INDIA MANUFACTURER AND SUPPLIER OF PLATINISED TITANIUM ANODES AND PLATINISED NIOBIUM ANODES)

December 6, 2020 at 7:22 PMPlatinised

Tiaano offer Platinum plated Copper Anode, Platinum Plated Titanium anodes & Niobium Anodes (Platinum Plated Electrodes) for various research and developments. Many article provides a history of platinised anodes by reviewing innovations in the, electroplating, electro galvanizing, electro winning, chlor-alkali industry etc.... These anodes are attractive for numerous reasons (e.g., long life and educed energy consumption), but they must still overcome the hurdle of cost to gain wider acceptance for applications in the various process industries.

Chemical Behavior of Platinum and Titanium:-

Platinum is preferred on an anode's outer surface because it is highly resistant to corrosion and can ensure current flow in most electrolyte media without leading to the formation of an insulating layer on itself. Because it doesn’t corrode, it doesn’t produce corrosion products and hence the consumption rate is very low.

Titanium shows reasonably good resistance to a marine environment (seawater in particular). It does not react with concentrated (80%) solutions of metallic chlorides. However, it is susceptible to attack by hydrofluoric acid (HF) and hot hydrochloric acid (HCl) of higher concentrations. Even hydrogen peroxide and hot nitric acid can attack titanium. Oxidizing agents normally do not attack titanium because it readily forms a protective oxide coating. However, non-oxidizing substances such as sulfuric acid (above 5% concentration) and phosphoric acid (above 30%) can attack titanium. From a hydrogen embrittlement point of view, titanium fares better than tantalum as an anode material.

Chemical Behavior of Copper:-

Copper is a reddish metal with a face-centered cubic crystalline structure. It reflects red and orange light and absorbs other frequencies in the visible spectrum, due to its band structure, so it as a nice reddish color. It is malleable, ductile, and an extremely good conductor of both heat and electricity. Copper has low chemical reactivity. So people are using platinum plating on copper, this coating / plating protects the metal from further attack.

platinum_plated_copper_anode

PLATINISED ANODE FOR ELECTROLYSIS RESEARCH AND DEVELOPMENT (TIAANO CHENNAI, INDIA MANUFACTURER AND SUPPLIER OF PLATINISED TITANIUM ANODES AND PLATINIZED NIOBIUM ANODES)

November 15, 2020 at 5:08 PMPlatinised

Tiaano offer Platinum plated Anode and cathodes (Electrodes) for various research and developments. Many article provides a history of platinized anodes by reviewing innovations in the chlor-alkali industry, electroplating, electro galvanizing, electro winning etc.... These anodes are attractive for numerous reasons (e.g., long life and educed energy consumption), but they must still overcome the hurdle of cost to gain wider acceptance for applications in the various process industries.

Chemical Behavior of Platinum Plated and Titanium:-

Platinum is preferred on an anode's outer surface because it is highly resistant to corrosion and can ensure current flow in most electrolyte media without leading to the formation of an insulating layer on itself. Because it doesn’t corrode, it doesn’t produce corrosion products and hence the consumption rate is very low.

Platinum is inert in fused salts and acids, whereas it is dissolved in aqua regia. There is no risk of hydrogen embrittlement. It is one of the few rare metals that perfectly resist chlorides of seawater.

Titanium shows reasonably good resistance to a marine environment (seawater in particular). It does not react with concentrated (80%) solutions of metallic chlorides. However, it is susceptible to attack by hydrofluoric acid (HF) and hot hydrochloric acid (HCl) of higher concentrations. Even hydrogen peroxide and hot nitric acid can attack titanium. Oxidizing agents normally do not attack titanium because it readily forms a protective oxide coating. However, non-oxidizing substances such as sulfuric acid (above 5% concentration) and phosphoric acid (above 30%) can attack titanium. From a hydrogen embrittlement point of view, titanium fares better than tantalum as an anode material.

Benefits of Platinised Titanium Electrode:-

Platinum has the advantages of electrochemical inertness, mechanical strength, workability and favorable electrical conductivity. However, it is prohibitively expensive. Development of platinum on titanium and platinum on tantalum (plated) materials has opened up the feasibility of using these for anode materials for Electro Plating, metal finishing and cathodic protection systems in critical applications.

Platinised_Anode_Electrolysis

HARD CHROME PLATING ANODE - PLATINUM PLATED ANODES - TIAANO MANUFACTURER AND SUPPLIER OF PLATINISED TITANIUM ANODES AND PLATINIZED NIOBIUM ANODES

November 8, 2020 at 4:11 PMPlatinised

Tiaano manufacturing different sizes and Shapes of platinum or platinised anode for Hard Chrome Plating process. Electro plating Electrodes [Anodes or Cathodes] are available with hanging hook, frame or band in the form of sheet, expanded mesh, pipe, rod and custom built.

Platinised titanium Platinised Niobium anodes provide a cost effective replacement for lead anodes in hard chromium plating. They provide superior quality deposition and consistency resulting in increased productivity and throughput. Cost benefit analysis demonstrates that the higher initial investment in this technology can be recouped within a short period of time.

Benefits of Platinised Titanium Anodes for Hard Chromium Plating:

Long life, dimensionally stable and easily fabricated into any shape:  Whereas titanium anodes are dimensionally stable throughout their operating life and can easily be manufactured, even in complex shapes and lengths, up to 4m. Consequently, shaped anodes can be manufactured very accurately to allow consistent plating to small tolerances, often making a further honing step unnecessary.

Homogeneous and long-lasting active surface: Platinised titanium anodes operated correctly, remain deposit free and therefore perform constantly well throughout the whole anode life.

Energy savings with shaped anodes and small anode/cathode distances: platinised titanium anodes can provide energy savings both in heating and cooling which, in turn, allows the plating chemistry to be easier to manage and maintain.

Mesh anodes provide excellent throwing and can be used at high current densities: In electrolysis, corners and edges are preferred reaction sites; an expanded mesh has edges evenly distributed across the anode surface, thus producing uniform current density and excellent plating results.

Easier handling and recoating: Positioning of lead anodes for optimising chrome plating is often awkward due to their weight, whereas spot welded or bolted mesh anodes are very light by comparison and allow safer and easier handling. Furthermore, they can be easily removed and / or replaced whenever necessary. This often allows a re-use of expensive anode materials and designs, and reduces operational costs.

Hard_Chrome_Plating_Anode

IONIZATION WATER ANODE – PLATINISED TITANIUM SHEET ANODE - TIAANO MANUFACTURER AND SUPPLIER OF PLATINISED TITANIUM ANODES AND PLATINISED NIOBIUM ANODE

November 1, 2020 at 10:14 PMPlatinised

Tiaano manufacturing different sizes and Shapes of platinized Titanium Electrodes (Anodes and cathods for water ionisers. The key factor for a quality water ionizer is the material of the electrodes, (anode and cathode) the anode is positively charged with respect to the cathode

Key Benefits of Platinised Titanium Anodes and Platinized Cathodes in Ionization:-

1)        Favorable dimensional stability

2)        Corrosion resistance ensures durability with easy maintainability

3)        Light weight, as well as favorable current distribution

4)        High resistance to corrosion

5)        Resistance to oxidation

6)        High electrical conductivity

7)        No contamination in water

Titanium is non-soluble and stable in water. It will last for many years [20, 30 or more] without corroding. Its durability, strength, and non-toxicity make it the choice of material to doctors and medical scientists use for their implanted medical devices such as artificial joints and pacemakers. Also, because it’s so durable and non-magnetic it makes it the best choice of metal to construct a water ionizer electrode.

Platinum is a catalyst, and is needed to speed up the electrolysis. With the water ionizers changing the water so drastically just by passing the water over the electrodes, the ionization process wouldn’t occur without a speeder-upper.

Tiaano suggest the platinised Titanium anodes and Platinized Titanium Cathode for water alkaline process because of its advantages like no contamination in water, complex shapes is possible, Long lifetime, Easy maintenance, High dimensional stability and loading capacity, Good corrosion resistance, Low weight, Perfect current and distribution. Anodes and cathodes material will be similar. It will be consume proper equal voltage in all cells.

Ionization_water_Anode

ALKALINE WATER ANODE – PLATINISED TITANIUM MESH ANODE - TIAANO MANUFACTURER AND SUPPLIER OF PLATINISED TITANIUM ANODES AND PLATINISED NIOBIUM ANODE

November 1, 2020 at 9:58 PMPlatinised

The Platinised Titanium electrodes (Anodes and cathodes) create the ionisation, the electrode cell is the heart of an ioniser. It consists of a series of electrodes (plates), each separated by a membrane. The Platinized Titanium Mesh Electrodes is mostly used, because it has outstanding practical performance, such as strong ability of ionization release, good exchange of electrolyte, close structure and light weight, etc.

The best water to drink is alkalized or ionized water, which is produced by running normal tap water over a positive (platinum or platinized anode) and a negative (platinum or platinised cathode) electrode. This creates positive and negative ions in the water that are then separated creating two different waters, one that is alkaline and one that is acidic.

Specifications of Ionization Electrodes (Platinum Plated Anodes & Platinum Plated Cathodes):-

Substrate Standard

Titanium As per ASTM

Grade

1

Substrate Purity

99.9% pure

Anode & Cathode Shape

Titanium Sheet, Rod, Expanded Mesh, Tube

Plating (Catalyst)

Pure Platinum

Purity of Platinum Catalyst

100%

Platinum Thickness

0.5 Micron, 1.0 Micron and 20 Micron

Plating Process

Electro deposition

Catalyst Color

Silver White

Electrode Assembly

2 Plates, 3 Plates, 5 Plates, 7 Plates and 9 Plates
