Platinized Titanium & Niobium Anode Dimensionally Stable Anode

In today's competitive jewelry and precision components market, unreliable anodes in electro forming gold processes can cause uneven deposition, frequent replacements, and compromised product integrity—leading to costly rejects and delays. The MMO coated cylindrical mesh addresses these challenges head-on by providing exceptional stability and efficiency in electrolytic environments.

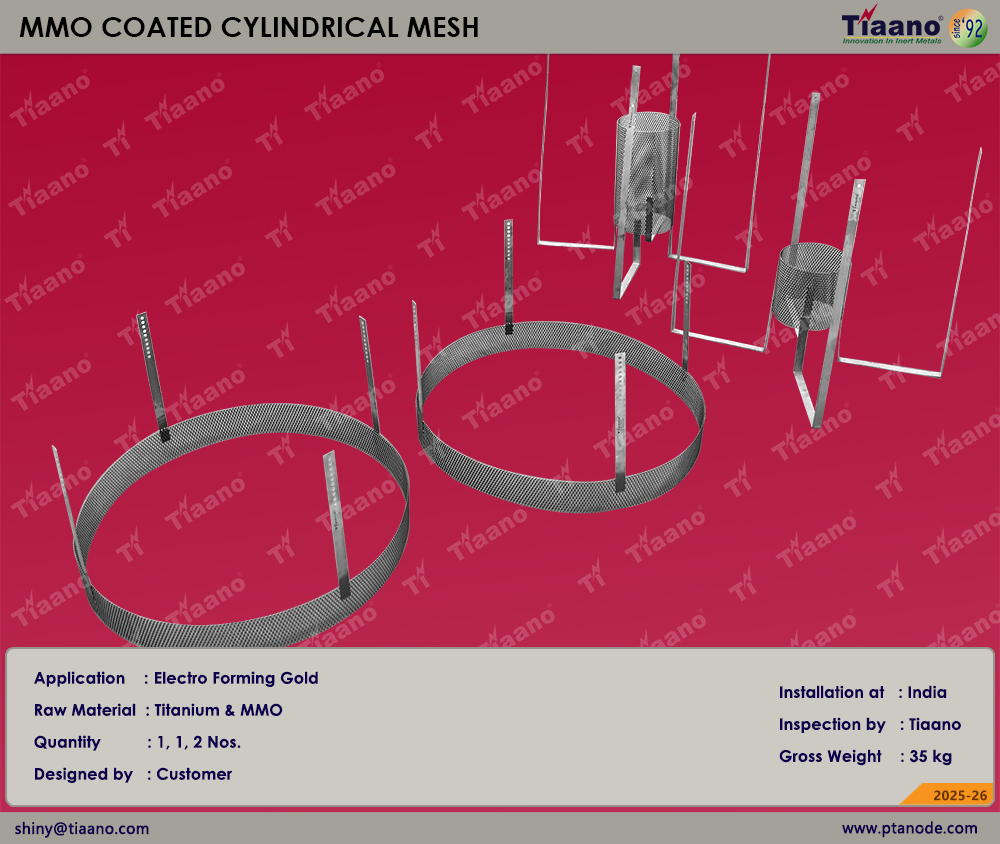

Ensuring Reliability in Electro Forming Gold

This advanced MMO coated cylindrical mesh delivers unparalleled reliability in electro forming gold, where consistent current distribution is paramount for creating thick, stress-free gold layers on complex mandrels. As a dimensionally stable insoluble anode, it supports oxygen evolution without dissolution, preventing electrolyte contamination and maintaining bath purity throughout prolonged production cycles.

Key Benefits for Industry Professionals

Professionals gain from significantly reduced overpotential, resulting in lower energy usage and anode lifespans that often extend years beyond traditional soluble options. The cylindrical mesh geometry maximizes active surface area, ensuring uniform radial ion flow and higher deposition rates while eliminating hotspots that lead to porosity or burning in gold electroforms.

Manufacturer Excellence: Ti Anode Fabricators Pvt. Ltd.

Ti Anode Fabricators Pvt. Ltd. leverages decades of electrochemical expertise to produce superior MMO coated cylindrical mesh solutions. Their proprietary thermal decomposition process achieves exceptional MMO adhesion on titanium substrates, yielding anodes that excel in aggressive cyanide-based gold electrolytes with outstanding catalytic efficiency.

Primary Applications in Electro Forming Gold

Engineered for electro forming gold, this MMO coated cylindrical mesh encircles mandrels in cylindrical plating tanks, facilitating optimal radial current distribution for uniform thickness buildup. It is particularly effective in high-volume setups producing intricate hollow jewelry and precision micro-components.

Technical Specifications

Available in customer-specific models:

• OD 483 MM × 295 MM height × 1 MM thickness with hook (active mesh only)
• OD 170 MM × 335 MM height × 0.9 MM thickness with hook (active mesh only)

These designs are tailored to fit diverse tank configurations, enhancing scalability in electro forming gold operations.

Functional Role and Critical Importance

The MMO coated cylindrical mesh functions as a robust insoluble anode, catalyzing oxygen evolution while gold ions deposit on the cathode mandrel. This eliminates sludge buildup associated with soluble anodes, enabling millimeter-thick deposits with minimal internal stress, superior adhesion, and brilliant mirror finishes—essential for lightweight, structurally sound gold products.

Raw Material Justification: Titanium & MMO

The titanium substrate provides unmatched corrosion resistance in cyanide electrolytes, forming a passive oxide layer that ensures dimensional stability. The mixed metal oxide (MMO) coating—typically iridium-ruthenium-tantalum oxides—offers high electrocatalytic activity, low oxygen overpotential, and exceptional durability under elevated current densities, guaranteeing contamination-free gold deposits unlike degradable alternatives.

Diverse Industrial Applications

• Luxury jewelry electroforming for hollow bangles, chains, earrings, and pendants
• Precision electronics manufacturing of gold contacts and interconnects
• Aerospace and automotive decorative or functional gold coatings on lightweight components
• Artistic replication and prototyping of intricate gold molds with fine surface details

Comprehensive Quality Assurance

Each MMO coated cylindrical mesh undergoes rigorous testing, including accelerated life assessments, XRF coating thickness analysis, and precise dimensional verification in ISO-certified laboratories. Customer inspections are welcomed to confirm performance standards before deployment in electro forming gold systems.

Global Reach and Future Partnerships

Ti Anode serves clients across Asia, Europe, and emerging markets with rapid customization and reliable supply chains. Recent successful installations support leading Indian jewelry exporters; upcoming collaborations target Southeast Asian electronics firms and Swiss luxury watchmakers advancing their electro forming gold capabilities.

Elevate your electro forming gold process efficiency and product quality with our precision-engineered MMO coated cylindrical mesh.—visit us at www.ptanode.com or email us at shiny@tiaano.com for expert consultation, custom designs, and competitive quotations.

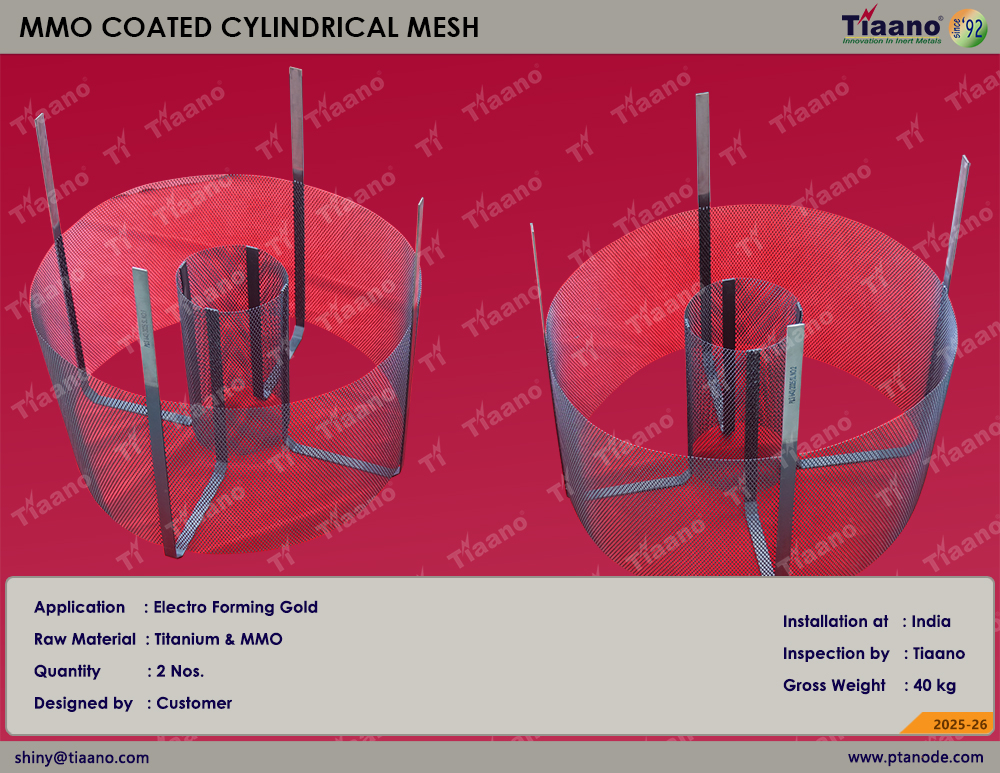

MMO Coated Cylindrical Mesh for Electro Forming Gold – Supplied by Ti Anode Fabricators Pvt. Ltd.

In the precision-driven world of Electro Forming Gold, the choice of electrode material can determine success or failure. The MMO Coated Cylindrical Mesh is not just a component—it is the backbone of efficiency, durability, and accuracy in electroforming processes. For industries where gold deposition must meet uncompromising standards, this product is indispensable.

Why Choose This Product

The MMO Coated Cylindrical Mesh offers superior conductivity, long service life, and consistent performance. Its design ensures uniform current distribution, making it the ideal solution for high-value electroforming applications.

Manufacturer Highlight

Ti Anode Fabricators Pvt. Ltd. (Tiaano) has established itself as a global leader in advanced electrode technologies. With decades of expertise, Tiaano manufactures MMO Coated Cylindrical Mesh with unmatched precision, ensuring every product meets international standards of quality and reliability.

Application Areas

The MMO Coated Cylindrical Mesh finds its primary application in Electro Forming Gold, a critical process in industries such as:

• Electronics manufacturing (micro-circuitry, connectors)
• Jewelry and decorative plating
• Aerospace and defense components requiring gold coatings
• Medical devices demanding biocompatible gold layers

Function & Importance

In Electro Forming Gold, the MMO Coated Cylindrical Mesh acts as the anode, enabling controlled deposition of gold onto substrates. Its cylindrical design maximizes surface area, ensuring uniform plating thickness and minimizing defects. This precision is vital for industries where even microscopic inconsistencies can compromise product integrity.

Specifications

• Outer Diameter (OD): 600 mm
• Height: 360 mm (Active mesh surface: 320 mm)
• Wall Thickness: 1 mm
• Design: Cylindrical mesh with hook for easy installation
• Raw Material: Titanium substrate with Mixed Metal Oxide (MMO) coating
• Capacity: Engineered for high-load electroforming operations
• Customization: Tailored to customer-specific designs and requirements

Raw Material Justification

Titanium is chosen for its corrosion resistance, mechanical strength, and lightweight properties. The MMO coating enhances electrochemical performance, ensuring durability and efficiency. Together, they provide a robust solution capable of withstanding the demanding conditions of Electro Forming Gold.

Application List

• Gold electroforming in electronics
• Precision jewelry manufacturing
• Aerospace component plating
• Medical device coatings
• Decorative and industrial gold deposition

Quality Assurance

Every MMO Coated Cylindrical Mesh undergoes rigorous Customer Inspection before dispatch, ensuring compliance with specifications and performance standards.

Why Choose Ti Anode

• Fast Delivery: Streamlined production and logistics
• In-Stock Availability: Ready-to-ship standard designs
• Reliable Service: Trusted by global clients for consistency and support

Future Partnerships

Tiaano has successfully dispatched products to clients across electronics, aerospace, and medical industries. With growing demand for precision electroforming, potential partnerships extend to luxury goods manufacturers, semiconductor companies, and advanced engineering firms.

For industries seeking excellence in Electro Forming Gold, the MMO Coated Cylindrical Mesh manufactured by Ti Anode Fabricators Pvt. Ltd. is the definitive choice.
📩 Contact us today: Website: www.ptanode.com Email: shiny@tiaano.com

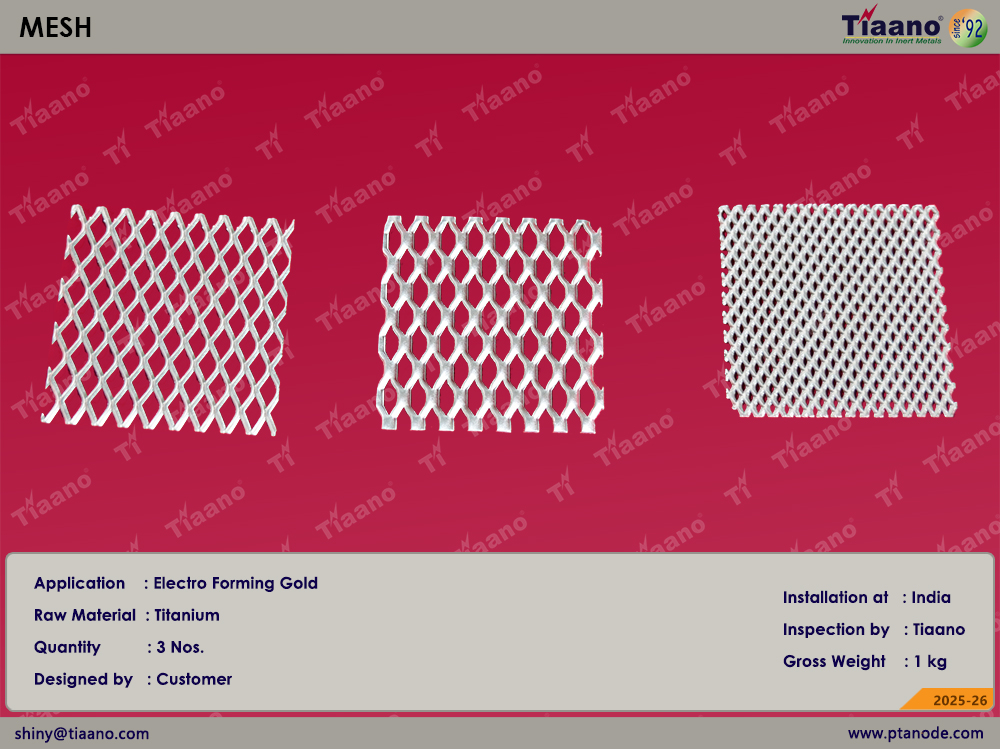

Revolutionary Titanium Mesh Manufactured for Precision Electro Forming Gold

Imagine a world where gold electroforming processes grind to a halt due to unreliable anodes, leading to inconsistent deposits, increased waste, and skyrocketing costs. This nightmare scenario is all too real for many in the jewelry and electronics industries, but it doesn't have to be. Our latest titanium mesh innovation, tailored for electro forming gold, offers a robust solution that ensures superior conductivity, longevity, and precision in every application.

Benefits of Choosing This Advanced Mesh

In an era where efficiency defines success, opting for our mesh in electro forming gold stands out for its exceptional durability and performance. Unlike traditional materials that corrode quickly under electrolytic conditions, this titanium mesh resists oxidation, minimizing downtime and maintenance. Industries seeking high-purity gold deposits will find it indispensable for achieving uniform thickness and fine details without defects.

Spotlight on Ti Anode Fabricators Pvt. Ltd.

Ti Anode Fabricators Pvt. Ltd., based in India, excels in crafting premium electrochemical components. With decades of expertise, they lead in producing customized anodes like this mesh for electro forming gold, blending cutting-edge technology with rigorous engineering to deliver products that outperform industry standards. Their commitment to innovation ensures clients receive tailored solutions that enhance operational efficiency.

Deployment Areas for the Mesh

This mesh has been successfully dispatched to clients across India, where it's integrated into high-volume production lines. From bustling manufacturing hubs  to specialized facilities, it's empowering local industries to elevate their electro forming gold capabilities, supporting both domestic growth and export-quality standards.

Role and Value of the Mesh in Electro Forming Gold

At its core, the mesh functions as an insoluble anode in electro forming gold setups, facilitating the electrodeposition of gold onto substrates through controlled electrolysis. Its open structure promotes even current distribution, preventing hotspots that could cause uneven plating or burn marks. This is crucial in electro forming gold, where precision directly impacts product quality—think intricate jewelry molds or microelectronic components. By maintaining stable electrochemical reactions, it boosts yield rates and reduces material waste, making it a game-changer for cost-sensitive operations.

Detailed Technical Specs

The mesh boasts precise dimensions: 50 MM width x 50 MM length x 0.9 MM thickness (without hook), constructed from high-grade titanium (TI). This compact design ensures seamless integration into existing electroforming tanks.

Superior Material Selection: Titanium's Edge

Crafted from pure titanium, this customer-designed mesh leverages the metal's inherent properties for optimal performance. Titanium is chosen for its outstanding corrosion resistance in acidic electrolytes used in electro forming gold, unlike copper or nickel alternatives that degrade rapidly. Its lightweight nature aids handling, while biocompatibility and high strength-to-weight ratio make it ideal for demanding industrial environments. Custom designs allow for tailored porosity and surface area, enhancing ion flow and deposition efficiency.

Diverse Usage Scenarios

This versatile mesh finds applications beyond basic plating:

• Jewelry manufacturing for creating detailed gold replicas and molds.
• Electronics sector for producing fine gold contacts and circuits.
• Automotive and aerospace for decorative and functional gold coatings on components.
• Medical devices where precise gold layers ensure conductivity and sterility.

Stringent Validation Processes

Every mesh undergoes third-party quality checks to verify compliance with international standards. Independent labs test for dimensional accuracy, material purity, and electrochemical performance, ensuring reliability in real-world electro forming gold applications.

Top Reasons to Select Tiaano

Partnering with Tiaano means unmatched reliability. With products often in stock, orders for this mesh can ship within days, minimizing lead times to as little as 48 hours for urgent needs. Their agile manufacturing process supports rapid customization without compromising quality, ideal for dynamic industry demands.

Future Alliances on the Horizon

We've recently dispatched this mesh to a leading jewelry exporter in India, streamlining their electro forming gold operations. Looking ahead, we're eager to collaborate with electronics firms, automotive suppliers and emerging medtech startups globally—any business requiring high-precision gold deposition could benefit from similar tailored solutions.

In summary, embracing our titanium mesh for electro forming gold isn't just an upgrade; it's a strategic investment in excellence. Ready to transform your processes?

Reach out today at shiny@tiaano.com or visit www.ptanode.com to discuss how we can customize a solution for you.

Platinised Titanium Anodes are exclusively used in the Electro Plating Process. Tiaano Electrodes has the technology to platinum titanium substrates in the form of plate, wire, rod, tube, plate and mesh. Furthermore, we have the ability to manufacture complex fabricated anodes. The external surface of all platinised titanium anodes is essentially pure platinum which exhibits all the normal characteristics of the wrought metal as far as corrosion behavior is concerned.

Tiaano producing different sizes and Shapes of platinised Titanium Electrodes for water ionizers. The central pieces of the ionization chamber are its two social affair terminals, (the anode and cathode) the anode is positively blamed for respect to the cathode. The Platinum Titanium cathodes make the ionization, the terminal cell is the center of an ionizer. It includes a movement of cathodes (plates), each detached by a membrane. The Platinized Titanium Mesh Anode is generally used, because it has phenomenal valuable execution, for instance, strong limit of ionization release, incredible exchange of electrolyte, close development and light weight, etc.

What is platinum mesh used for?

Platinum Titanium mesh is used in chemical research. Among them, Titanium is less expensive; however, it has a much lower breakdown potential than Niobium or Tantalum. The titanium oxide breaks down at anodic potentials in the 12 V range.

Platinum is one of the valuable metals. Platinized titanium anodes are broadly utilized in Electro Plating, metal finishing, metal recuperation processes. They have effectively supplanted lead anodes in electroplating applications because of their lower utilization, layered exactness, capacity to frame exact store thicknesses on wanted mathematical shapes, unsurprising plating science and simplicity of upkeep. These anodes can be planned and framed with different calculations in light of the parts to be electroplated.

For top notch electroplating anodes, produced to client particulars and configuration, Electroplating is utilized to plating specific metals with a slender layer of an unadulterated metal, similar to copper, chromium, platinum, nickel, palladium silver, zinc, gold or any of a few composites. During the cycle, an electric flow goes through an answer known as an electrolyte. The structure of the electrolyte relies upon the ideal covering. The thing being electroplated (cathode) is submerged into the electrolyte arrangement, just like the plating anode.

Tiaano assembling and providing Platinised Titanium Mesh Anode (with outline, electrical connector and Hook) and uniquely crafted anodes for Electro plating Application. We have the office to do platinum plating 0.5 micron to 20 micron thick by the course of Electro statement. We likewise do replating of existing titanium mesh.

 Platinized Titanium & Niobium Anode (Dimensionally Stable Anode)

Tiaano fabricators and provider of Platinum plated Anodes (Electrodes) for different electrolysis application. In adherence to the set business norms, our gave platinum anode is all around fabricated utilizing high grade unrefined substance and most recent innovation. Platinised titanium can have expressively various properties from platinum itself.

Attributable to its without consumption and fine completion, to guarantee the great quality, the offered anode is seriously tried by our quality specialists against various quality boundaries. Tiaano Electrolysis Anodes (Electrodes) comprise of a titanium or Niobium based material as extended network, sheet, pole, wire, cylinder or line.

Platinum is the most dynamic metal for any electro synthetic or electrolysis process because of its ongoing directing property. Platinum being the most exorbitant material intelligent usage of Platinum for the more noteworthy worth guarantees efficient arrangement. Platinized Anodes is none yet an objective usage of platinum by plating restricted amount on to titanium to accomplish a similar outcome as utilizing platinum metal.

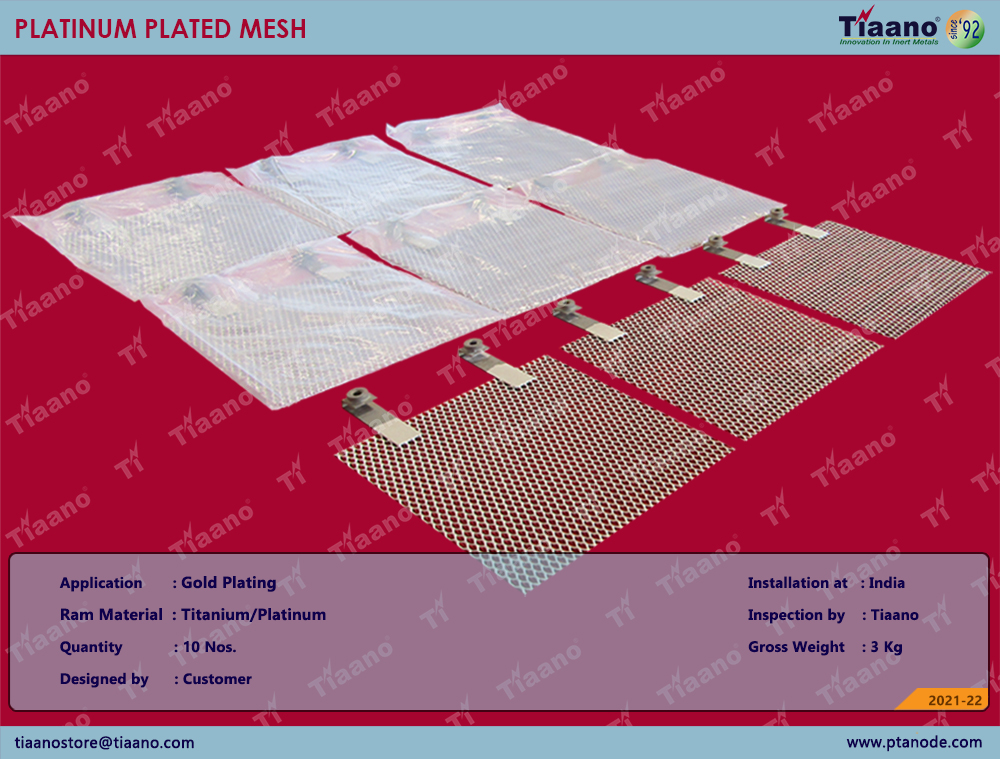

Platinised Titanium Mesh Anodes are made out of titanium mesh substrate with a platinum layer plated on it. Platinized titanium mesh anodes are planned with explicit platinum material (Pt) which makes the anodes correspondingly stable for a long time. Tiaano design and fabricating platinised titanium mesh anodes with various aspects and plating thicknesses. Tiaano have the lab to do platinum plating 0.5 micron to 20 micron thick by the course of Electro testimony.

Tiaano Platinized Titanium extended Mesh Anodes are utilized in different applications. Tiaano have the plating bath to get ready Platinised Titanium , Platinised Niobium and Platinised Nickel combinations. We have the inplant creation limit of 20 m2 each day. We are trading the anodes in excess of 64 nations.

Benefits of Platinized Titanium Mesh Anode (Pt Ti):-

Platinized Titanium mesh anodes can be effectively fixed to all surfaces.

Platinized titanium mesh anode enjoys benefit being an inactive anode which don't consume and remains correspondingly stable for a significant stretch.

Even metal conveyance and of platinum layer and ideal bond on the titanium network.

Platinized titanium mesh anodes are correspondingly steady and dependable.

Platinized titanium mesh anodes have great mechanical properties

Platinised titanium mesh anode the base material is reusable after re-plating.

Platinized titanium mesh anodes requires less anode maintenence.

Platinised titanium mesh anodes are having uniform conductivity

Platinised titanium mesh anodes are having uniform current appropriation properties

 Platinized Titanium & Niobium Anode (Dimensionally Stable Anode)

Platinized anodes are produced with a titanium or niobium base design, as either extended metal mesh, sheet, bar, wire or cylinder. A slim plating of platinum between 2 to 5 microns thick is kept up with on these different molded anodes prepared for electro plating at plating baths. These platinum plated anodes have the electro compound properties of platinum and acts like unadulterated platinum metal. Platinized plating anodes covering/layer thickness goes from least 1.5 micron to max 20 micron.

Tiaano platinized titanium metal anodes are generally reasonable for wet electrodeposition of valuable metals like gold, platinum, palladium, chromium, nickel and copper and so on. More over platinum is having generally excellent physical and synthetic properties, for example…

v  Reduced plating time

v  High consumption obstruction

v  Good warm conductivity

v  Superior catalytic nature

v  Reduces or dispenses with optional cycles, like crushing

v  Anode geometry stays steady over the long run, permitting predictable improved plating results

v  Long working life, extremely low upkeep

                         Platinized Titanium & Niobium Anode (Dimensionally Stable Anode)

Plating anode or Platinized titanium anode intended to use in electro plating baths for Rhodium Plating or potentially corrosive based gold arrangements. The anode stem might be adapted to loom over the edge of the Tank or Beaker, while the bar length can be twisted into a circle and embedded into the arrangement.

Plan for - Platinized titanium anode intended for use in electroplating baths for helium and palladium plating or corrosive gold arrangements.

Take on - The titanium mesh embraces electroplating machine and electrolyzed water, and the surface is really cleaned and initiated by gold, silver and copper trimmings to clean the outer layer of the work piece.

Safeguard Jewelry - The titanium mesh utilizes electroplating machine and electroplating water, gold-plated surface, silver and copper adornments, and is covered with a layer of platinum or gold to safeguard the gems and forestall oxidation.

Highlights - Titanium mesh is unadulterated titanium material, which isn't not difficult to break down, isn't not difficult to change tone, and has great electrical conductivity.

Platinized Titanium & Niobium Anode (Dimensionally Stable Anode)

Electroplating anodes are utilized to make items in numerous plating industries, including the pressure driven industry. The most well-known utilizes for electroplated items are chrome covered oil siphon drill flights, water powered chambers, transport flights, sheets and tanks where it would be illogical or excessively costly to make the thing completely out of the plating metal.

Platinum is one of the six metals in the "Platinum" gathering of valuable metals, which are all brilliant impetus materials. Platinum is conductive, artificially steady and exceptionally impervious to oxidation and erosion. It has a brilliant dim variety and can be cleaned to an assortment of completions.

Platinized titanium anodes ought to be supplanted when they begin giving indications of chipping or chipping away of the platinum covering or a staining shows up. Care ought to likewise be taken to supplant dissolvable anodes when they become excessively little.

Significant Applications:-

Hard chrome plating (cylinder rings, printing chambers, and so on.)

Valuable and non-valuable metal electroplating

Electronics and semiconductor industry

Electrolytic recuperation of metals

Substance process designing

Rapid Gold, Silver, Platinum and Palladium applications
