Advanced Titanium Anodes: Platinum Plated Mesh, MMO Coated Mesh, and Platinum Plated Cylindrical Mesh Manufactured by Ti Anode Fabricators Pvt. Ltd. for Superior Gold Plating
In high-stakes gold plating operations, anode failure can result in uneven deposits, bath contamination, excessive downtime, and substantial financial losses. Advanced insoluble anodes like platinum plated mesh, MMO coated mesh, and platinum plated cylindrical mesh eliminate these risks, delivering consistent performance in demanding electroforming and electroplating environments.
Critical Role in Reliable Gold Plating
These titanium-based anodes ensure exceptional reliability in gold plating processes by providing dimensionally stable, insoluble surfaces that catalyze oxygen evolution without dissolving. This prevents sludge formation, maintains electrolyte purity, and enables thick, uniform gold deposits with minimal stress—essential for precision gold plating in jewelry, electronics, and decorative applications.
Key Benefits for Precision Gold Plating
Industry professionals benefit from lower overpotential, reduced energy consumption, extended anode life (often 5–10 times longer than soluble alternatives), and superior current distribution. The mesh and cylindrical designs maximize surface area, promoting even ion flow and eliminating defects like burning or porosity in gold plating layers.
Ti Anode Fabricators Pvt. Ltd.: Expertise in Advanced Anodes
Ti Anode Fabricators Pvt. Ltd. excels in manufacturing high-performance platinum plated mesh, MMO coated mesh, and platinum plated cylindrical mesh through proprietary electroplating and thermal decomposition techniques. With decades of electrochemical engineering experience, they deliver customized solutions that meet stringent global standards for gold plating efficiency and durability.
Technical Specifications Overview
Common configurations include:

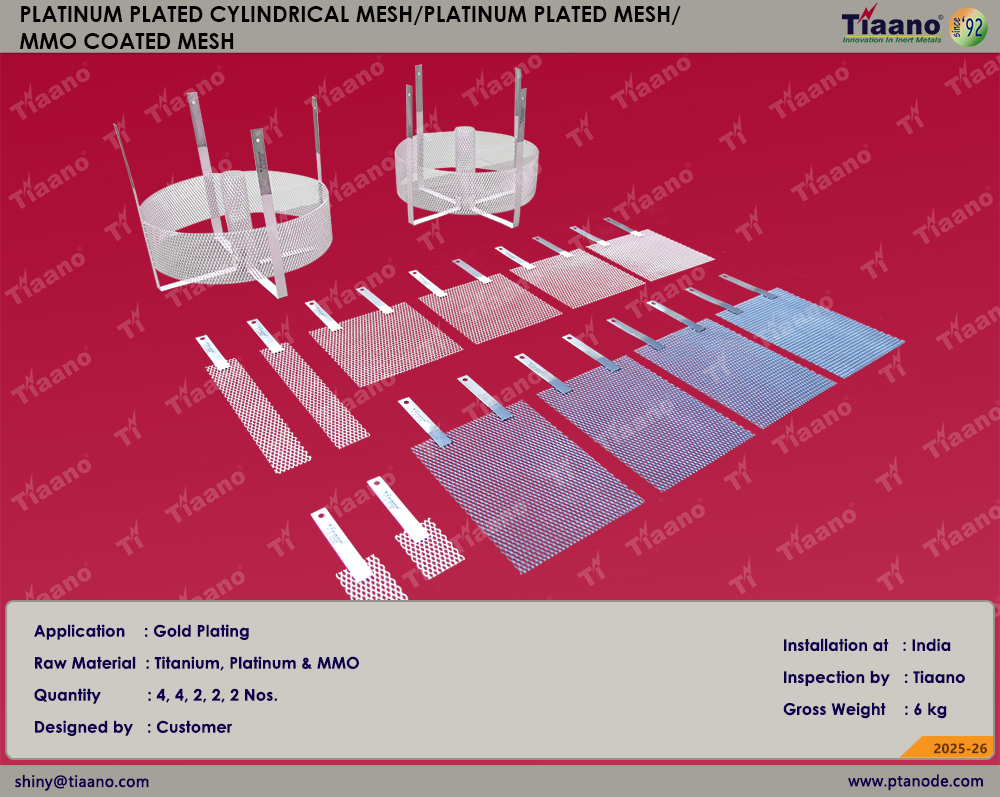

- Platinum plated mesh: Various sizes with 0.5–5 micron platinum thickness on both sides, often with hooks for easy installation.
- MMO coated mesh: Iridium-ruthenium-tantalum oxide coatings on expanded titanium mesh for cost-effective performance.
- Platinum plated cylindrical mesh: OD ranging from 170–483 mm, heights 295–335 mm, thickness 0.9–1.0 mm with hooks (active mesh only).
All designs are customer-specific to optimize tank geometry and current density in gold plating systems.
Functional Excellence in Gold Plating
These anodes serve as robust insoluble electrodes, facilitating controlled gold ion reduction at the cathode while evolving oxygen at the anode. The open mesh structure ensures excellent electrolyte circulation and uniform plating, critical for achieving mirror finishes and high-adhesion gold layers in electroforming processes.
Raw Material Justification
Titanium substrates are chosen for outstanding corrosion resistance in cyanide and acidic gold electrolytes, forming a protective oxide layer for dimensional stability. Platinum coatings provide supreme catalytic activity and longevity in premium gold plating, while MMO (mixed metal oxide) coatings offer a cost-effective alternative with high oxygen evolution efficiency and resistance to passivation—both ensuring contamination-free deposits.
Diverse Applications in Gold Plating
- Luxury jewelry electroforming for lightweight hollow pieces
- Electronics for reliable gold contacts and connectors
- Decorative gold plating on automotive and aerospace components
- Precision replication of intricate molds and prototypes
Rigorous Quality Assurance
Every anode undergoes comprehensive testing: XRF for coating thickness/uniformity, accelerated life testing in simulated gold plating baths, dimensional verification, and adhesion checks. Third-party or customer inspections are standard, guaranteeing performance compliance.
Global Reach and Strategic Partnerships
Ti Anode serves leading manufacturers across India, Asia, Europe, and the Middle East with rapid delivery and in-stock options. Recent supplies support major jewelry exporters; future collaborations target high-tech electronics firms in Southeast Asia and luxury brands in Europe advancing their gold plating capabilities.
Transform your gold plating operations with our precision-engineered platinum plated mesh, MMO coated mesh, and platinum plated cylindrical mesh.
Contact Ti Anode Fabricators Pvt. Ltd. today—visit www.ptanode.com or email shiny@tiaano.com for custom solutions and expert guidance.
