High-Precision Platinum Plated Mesh Manufactured for Superior Rhodium Plating Results
In the world of high-end jewelry and precision electronics, the brilliance and durability of a finish depend entirely on the chemistry of the bath and the quality of the anode. When achieving that signature "diamond white" shine, industry professionals know that compromise is not an option.
The Platinum Plated Mesh manufactured by Ti Anode Fabricators Pvt. Ltd. is the definitive choice for high-performance Rhodium Plating. Designed to provide a stable, insoluble electrochemical surface, our mesh ensures that your Rhodium Plating operations achieve maximum luster with zero contamination.
Why Platinum Plated Mesh is Essential for Rhodium Plating
Rhodium Plating is an expensive and delicate process. Using inferior lead or carbon anodes can lead to bath "poisoning," resulting in dull or darkened finishes. By contrast, a high-quality Platinum Plated Mesh acts as a permanent anode that does not dissolve into the electrolyte.
For jewelers and industrial platers in India, the Platinum Plated Mesh is critical because it maintains a consistent current density. This consistency is what allows Rhodium Plating to bond perfectly to the substrate, ensuring the 0.5-micron finish is uniform across complex geometries.

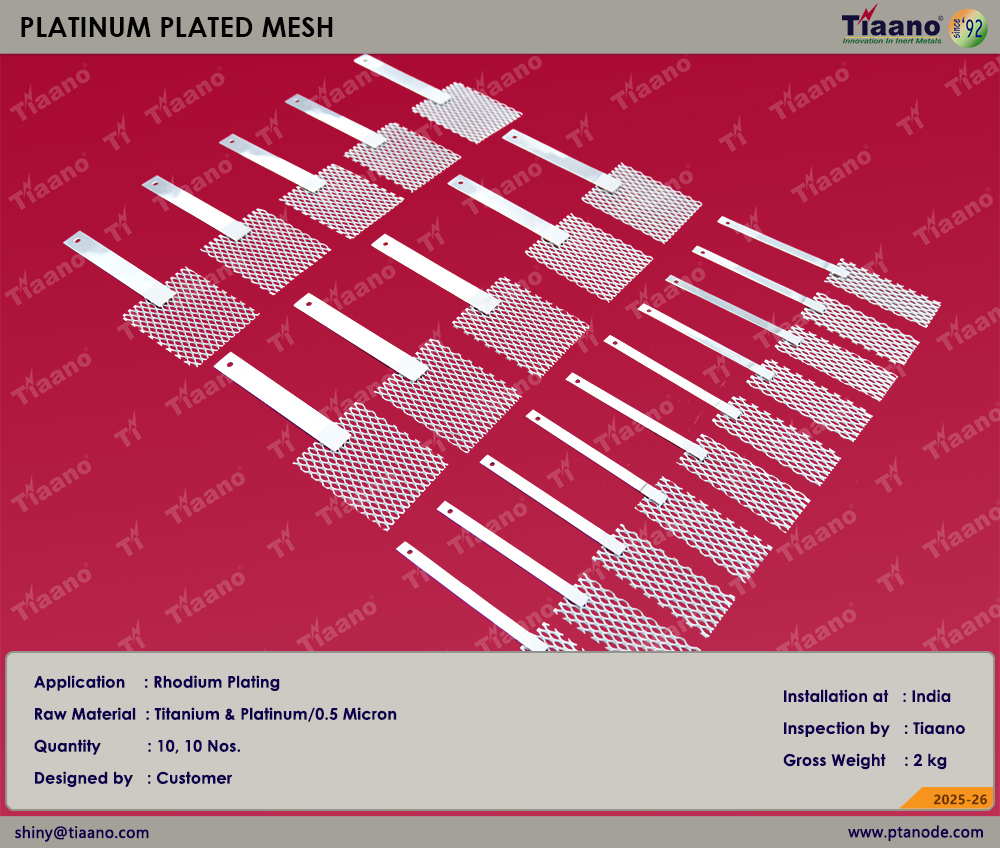

Technical Specifications: 1.5" x 4" Precision Mesh
Ti Anode Fabricators Pvt. Ltd. (Tiaano) provides a specialized specification designed for bench-top and industrial tanks alike:
üProduct: Platinum Plated Mesh
üPrimary Application: Rhodium Plating
üDimensions: 38.1 mm (1.5") Width x 101.6 mm (4") Length
üThickness: 0.9 mm Base Thickness
üCoating: 0.5 Micron Platinum Plating (Entire Surface)
üHardware: Integrated Hook for secure electrical contact
üSubstrate: Grade 1 Titanium
Material Justification: Titanium & Platinum Longevity
The core of our Platinum Plated Mesh is fabricated from high-grade Titanium. Titanium provides the structural integrity and corrosion resistance necessary to survive acidic plating baths. We then apply a 0.5 Micron Platinum Plating to the entire surface.
This platinum layer is crucial for Rhodium Plating as it offers the highest oxygen evolution efficiency. While some applications require 2.5 microns, the 0.5-micron specification for this mesh is expertly balanced to provide a cost-effective yet highly durable solution for precious metal deposition.
Quality Assurance: The Tiaano Standard
Every Platinum Plated Mesh produced for Rhodium Plating undergoes a rigorous quality control sequence. At our India-based facility, we conduct:
· Surface Morphology Checks: Ensuring the mesh is free of burrs that cause "burning."
· Coating Uniformity Tests: Verifying the 0.5-micron thickness is consistent across the entire surface area.
· Adhesion Testing: Guaranteeing the platinum layer will not peel under high-voltage cycles.
Our extensive industry reach across India ensures that whether you are a small jewelry boutique or a large-scale industrial manufacturer, your Rhodium Plating setup is supported by the best electrochemical technology available.
Upgrade Your Finishing Line Today!
Don't let inferior anodes ruin your expensive rhodium baths. Invest in the reliability of a Platinum Plated Mesh and experience the difference in clarity and brilliance.
